Component Layout

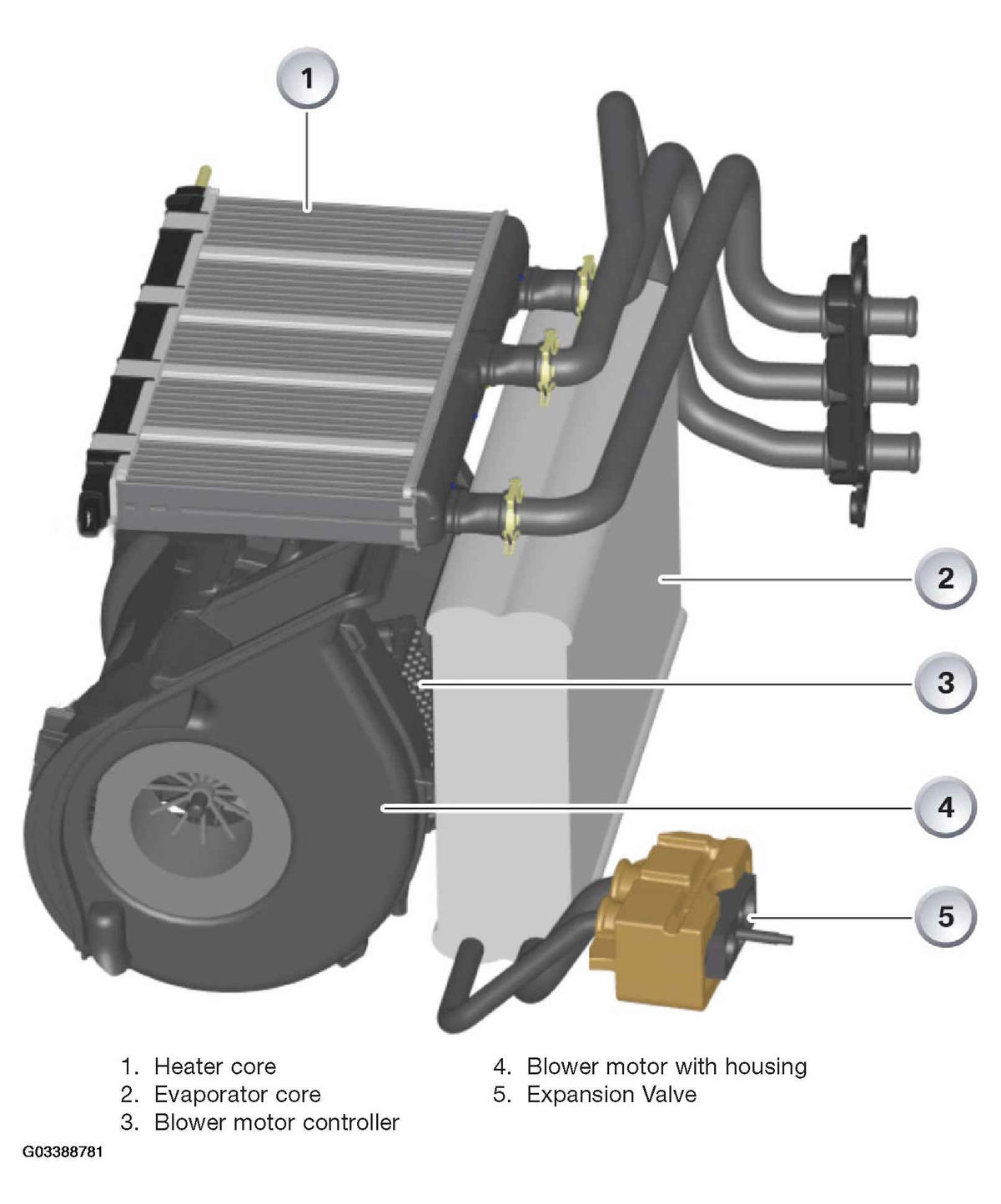

Fig 1: Identifying Heater Core And Blower Motor With Housing

G03388781

Courtesy of BMW OF NORTH AMERICA, INC.
