Shunt Wound Motors

In Shunt Wound Motors, the field coil is connected in parallel with the armature. The shunt motor does not decrease its torque as speed increases. Shunt motors do not produce high torque.

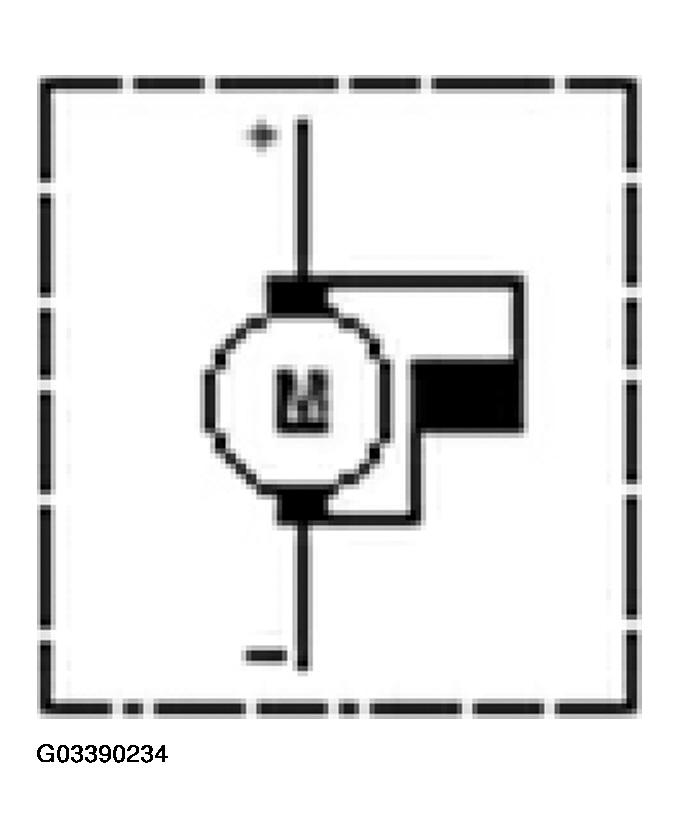

Fig 1: Identifying Shunt Wound Motors

Courtesy of BMW OF NORTH AMERICA, INC.
