Switch Block SBFA: Notes

All the windows may be operated from the SBFA. The Switch Block passes all window requests to the TMFA via the LIN Bus.

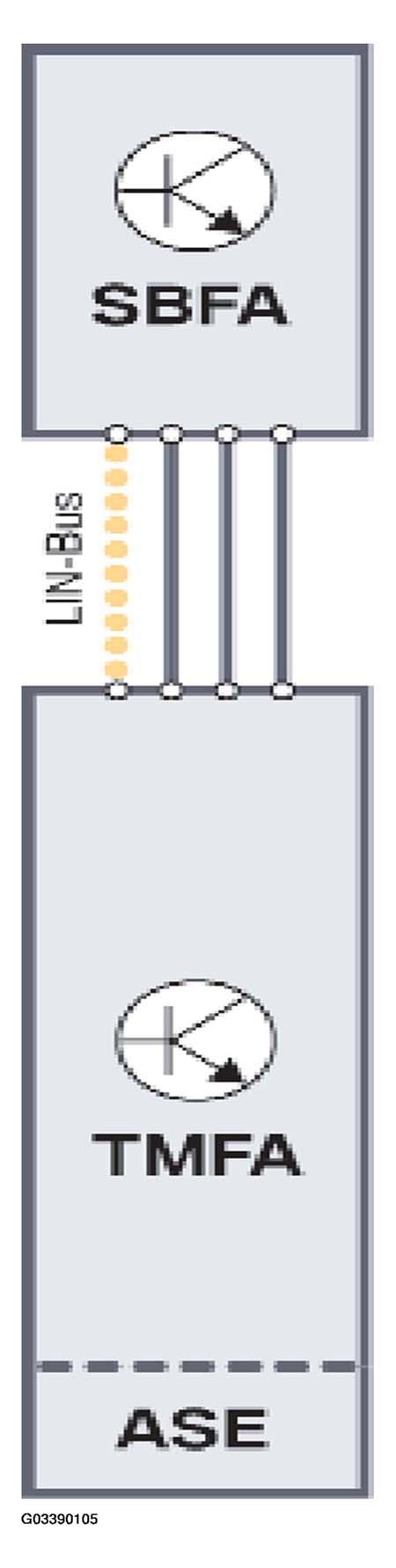

Fig 1: Identifying Switch Block SBFA
G03390105Courtesy of BMW OF NORTH AMERICA, INC.
