Outside Mirrors
Activation of the wing mirrors is performed by the door modules by means of the local electronics in the front doors. All the mirror functions, except for electrochromatic wing mirror and mirror heating, are active with terminal R on through to consumer shutdown.

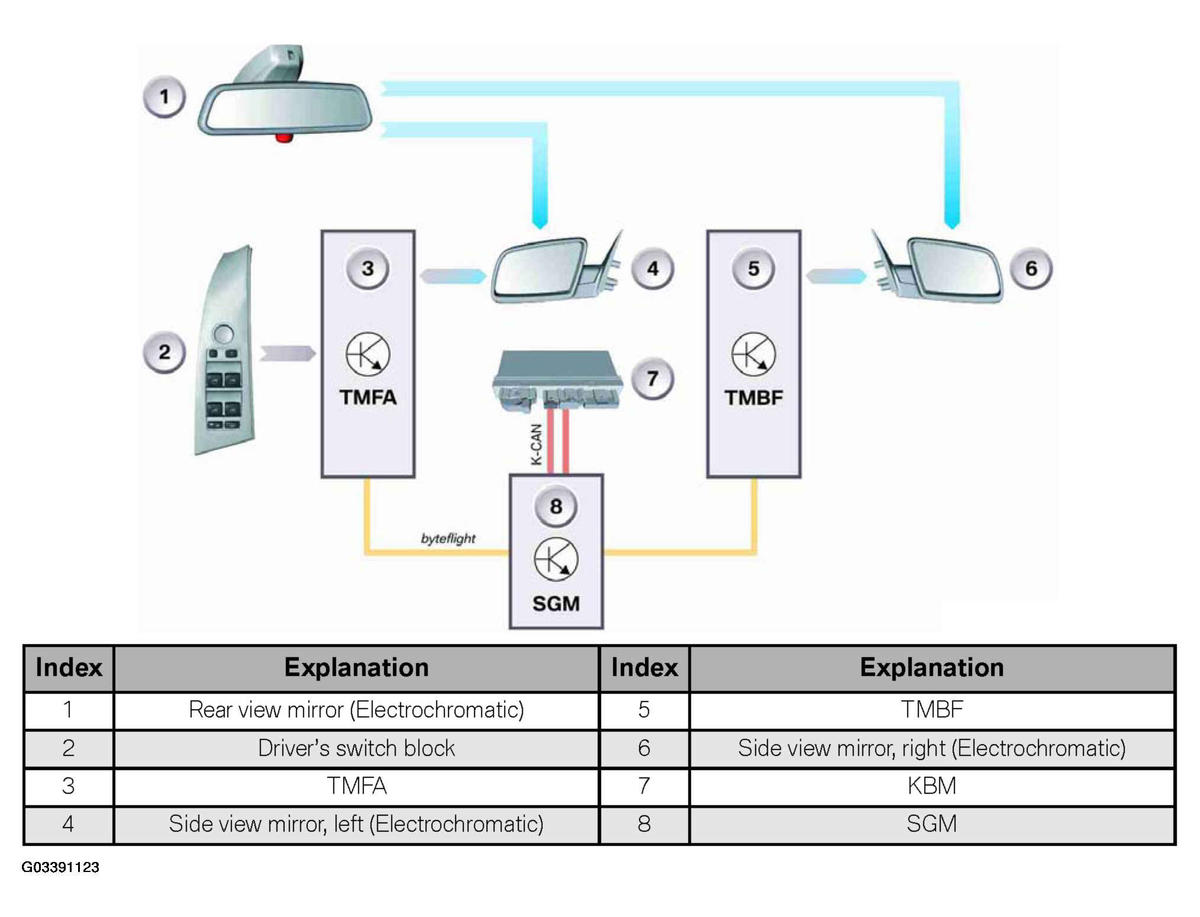

The mirror functions are controlled exclusively in the door modules, which communicate with each other via the byteflight. All the mirror adjustment functions are served by the adjusting switches in the switch block in the driver's door.
The following options are available:
- Electrochromatic interior rearview and wing mirrors
- Electrochromatic interior rearview mirror
- Light package including front-area lights in wing mirrors
- Wing-mirror memory in conjunction with seat memory
