Exterior Lights: Notes

The exterior lighting is based on the exterior lighting of the E65 and available in the following versions:

• Basic version with halogen headlights
• Adaptive Headlight System (AHL) with bi-xenon headlights

Voltage for all the lights is regulated by the light module. This regulation compensates for fluctuations in vehicle voltage.

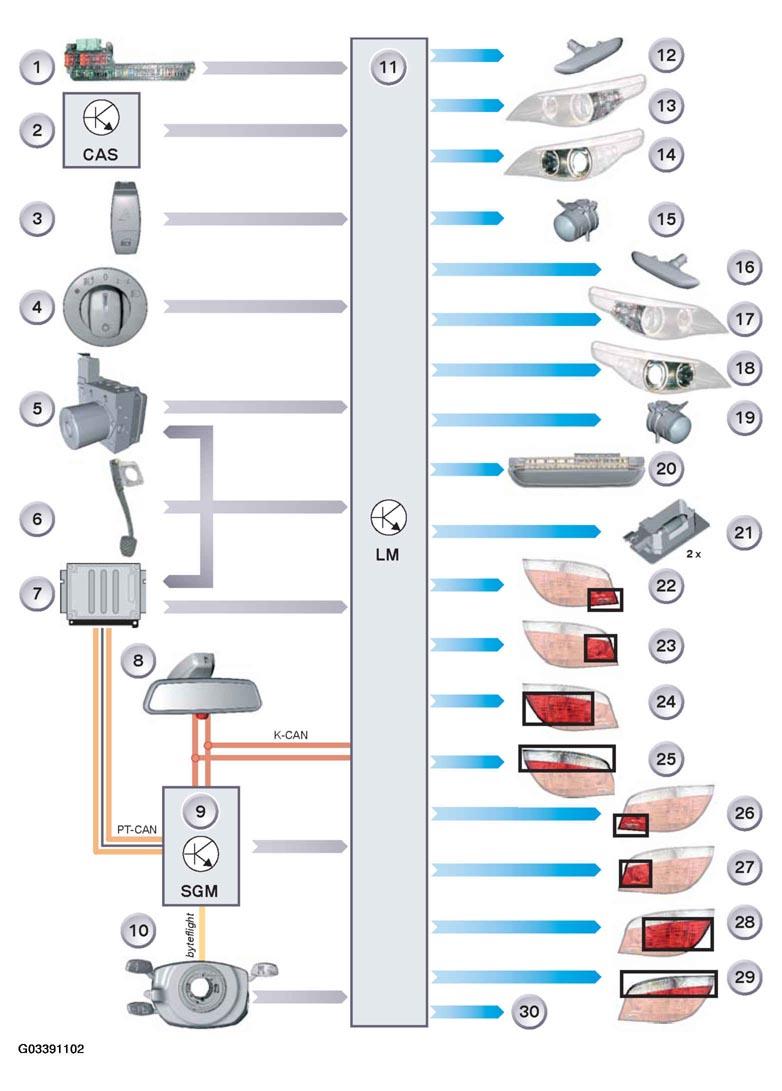

Fig 1: Identifying Exterior Lights Inputs/Outputs

Courtesy of BMW OF NORTH AMERICA, INC.
