41 00... Frame Alignment Control Body Dimensions
Dimensions in mm.
Measurement tolerances:
- ≤ 1000 mm ± 1.5 mm
- ≥ 1000 mm ± 2.5 mm
The control points shown serve to check the body and the straightening attachment.
The specified dimensions/measurements always refer to the centerpoint of the bore/screw.
Under Body View 1

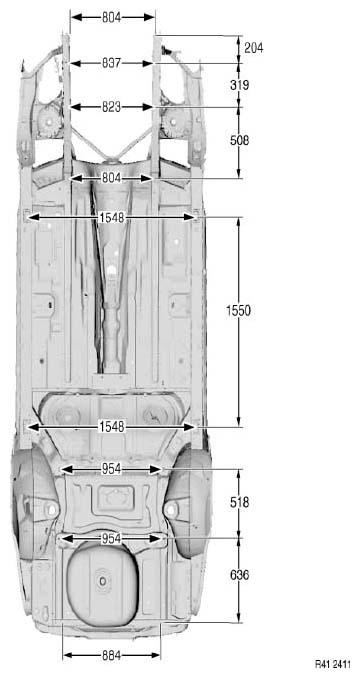

Fig 1: Under Body Frame Alignment Control Body Dimensions And Measurement Points (Under Body View 1)
Under Body View 2

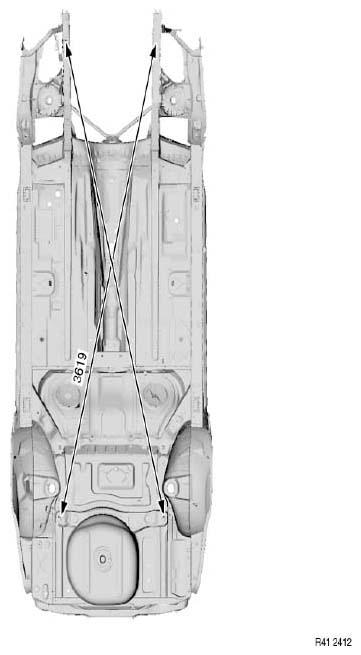

Fig 2: Under Body Frame Alignment Control Body Dimensions And Measurement Points (Under Body View 2)
Top view, front end

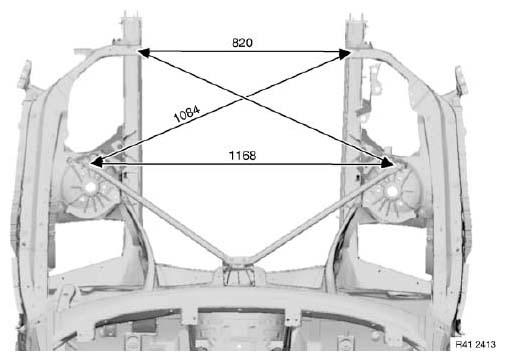

Fig 3: Engine Compartment Frame Alignment Control Body Dimensions And Measurement Points (Top View, Front End)
View, B-pillar

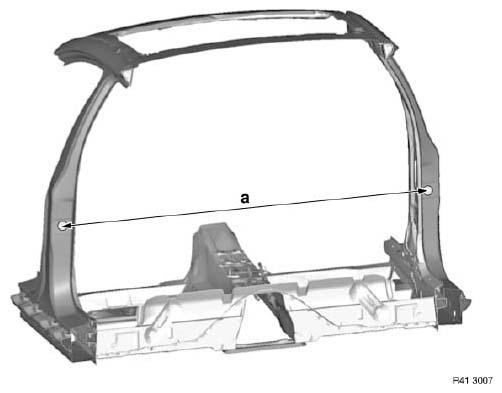

Measurement a=1549 mm between screw-on points of door brakes.
