Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|

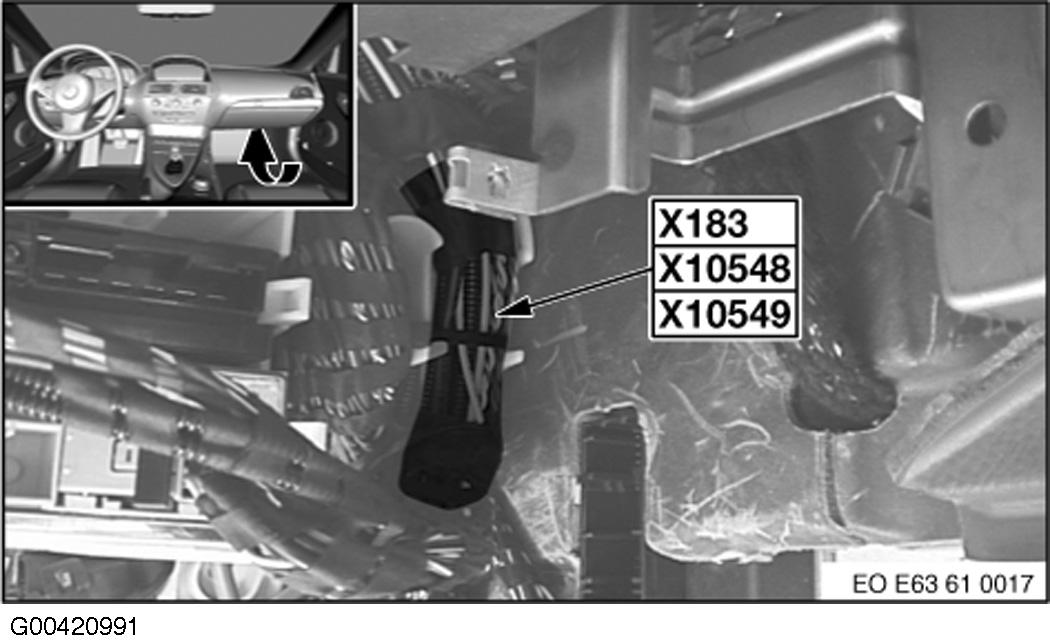

| X183 | Behind right side of dash. See Figure . |

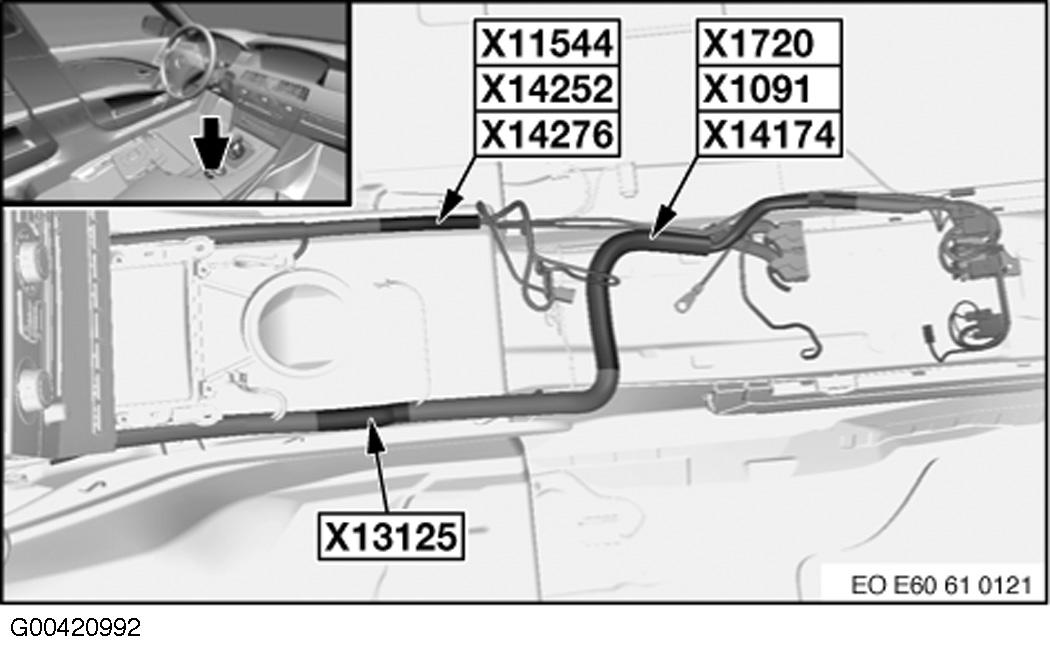

| X1091 | Under center console. See Figure . |
| X1720 | Under center console. See Figure . |

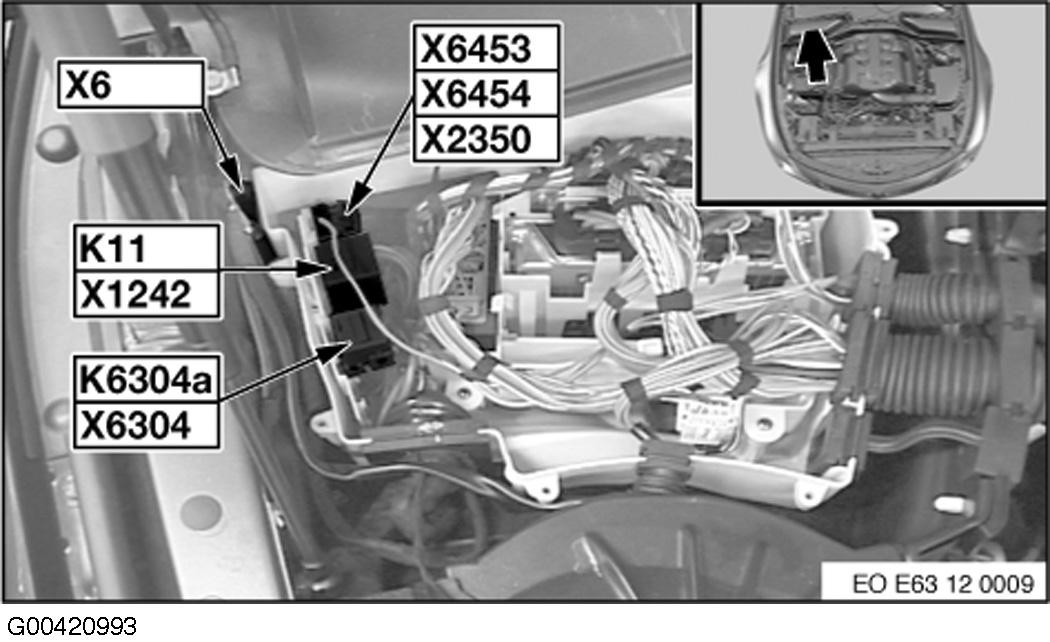

| X6453 | Right rear engine compartment. See Figure . |
| X6454 | Right rear of engine compartment. See Figure . |
| X10548 | Behind right side of dash. See Figure . |
| X10549 | Behind right side of dash. See Figure . |
| X11544 | In center console. See Figure . |
| X11544 | Under center console. See Figure . |
| X13125 | Under center console. See Figure . |
| X13724 | Right front footwell. See Figure . |
| X13725 | Right front footwell. See Figure . |
| X14174 | Under center console. See Figure . |
| X14252 | In center console. See Figure . |
| X14252 | Under center console. See Figure . |
| X14276 | Under center console. See Figure . |
