31 11 506 Lowering/raising front axle support (universal lifter)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Danger of injury!
Failure to comply with the following instructions may result in the vehicle slipping off the vehicle hoist and critically injuring other persons.
When supporting components, make sure that:

the vehicle can no longer be raised or lowered
the vehicle does not lift off the locating plates on the vehicle hoist.

IMPORTANT: Before lowering/removing front axle support:
Observe safety information for raising the vehicle
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load spring strut domes with sand bags.

WARNING: Secure engine in installation position with special tool to prevent it from falling down. Refer to 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N63) , 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N55, N52T, N53) , 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N57) or 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N20) .

IMPORTANT: N57: Risk of shorting the starter motor!

Necessary preliminary work:

Remove FRONT WHEELS .
Disconnect BATTERY EARTH LEAD .
Secure engine in installation position. Refer to 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N63) , 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N55, N52T, N53) , 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N57) or 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N20) .
Remove STEERING BOX COVER AT TOP LEFT AND RIGHT .
Remove ANTI-ROLL BAR LINK FROM ANTI-ROLL BAR .
Partly detach front left and right wheel arch covers (rear section) in rear area.
Remove steering shaft from steering box . See 32 31 211 REMOVING AND INSTALLING/REPLACING UNIVERSAL JOINT WITH CORRUGATED TUBING or 32 31 211 REMOVING AND INSTALLING/REPLACING UNIVERSAL JOINT WITH CORRUGATED TUBING .

Release screws (1).

Remove front left/right wheel arch cover (2) from bumper panel.

Installation note:

Make sure wheel arch cover is correctly positioned.

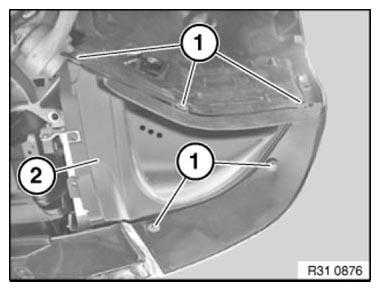

Fig 1: Identifying Wheel Arch Cover And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove brake air duct (2).

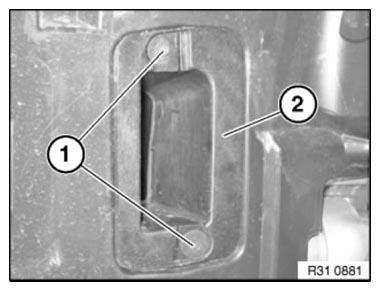

Fig 2: Identifying Brake Air Duct With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Release deformation element (3) from front axle support (2).

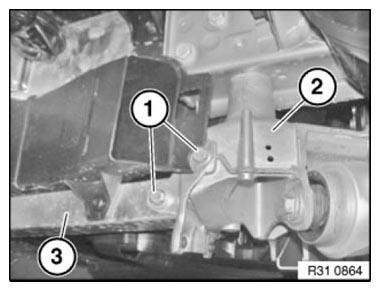

Fig 3: Identifying Deformation Element, Front Axle Support And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

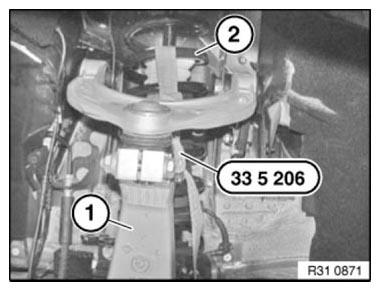

Secure swivel bearing (1) with special tool 33 5 206 on spring strut.

Fig 4: Securing Swivel Bearing On Spring Strut Using Special Tool (33 5 206)

Courtesy of BMW OF NORTH AMERICA, INC.

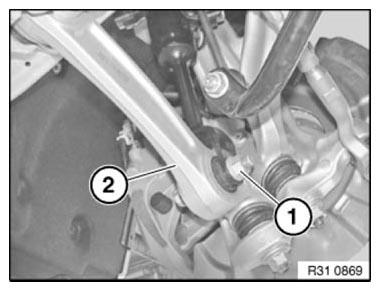

Release nut (1) and remove screw.

Release spring strut from wishbone (2).

Tightening torque 31 12 7AZ .

Fig 5: Identifying Spring Strut, Wishbone And Mounting Nut

Courtesy of BMW OF NORTH AMERICA, INC.

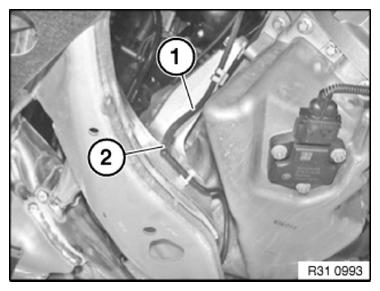

Carefully detach vacuum hose (1) from connecting piece (2).

Fig 6: Identifying Vacuum Hose From Connecting Piece

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connection (1) at front axle support.

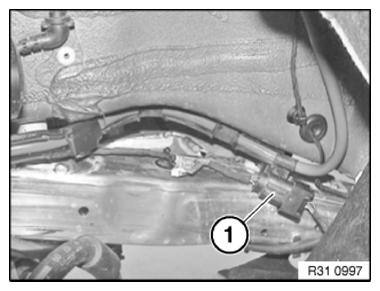

Fig 7: Identifying Front Axle Support Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

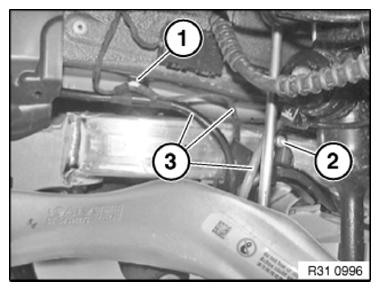

Unclip cable clip (1) on the frame side rail.

Release screw (2) on cable clip.

IMPORTANT: When lowering and raising, pay attention to routing of electrical cables (3)!
Lines must not be damaged!

Fig 8: Identifying Cable Clip On Frame Side Rail And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Engage special tool 31 5 251 with a 2nd person helping completely on workshop jack 00 2 030 .

Insert special tools 31 5 255 in telescopic supports of a profile rail pair.

NOTE: In a profile rail pair, two profile rails are connected to one another by gearing.

Insert special tools 31 5 256 in telescopic supports of other profile rail pair.

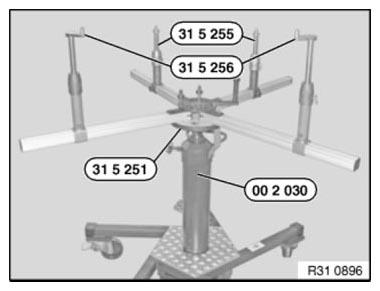

Fig 9: Identifying Special Tools (31 5 255, 31 5 256, 31 5 251 And 00 2 030)

Courtesy of BMW OF NORTH AMERICA, INC.

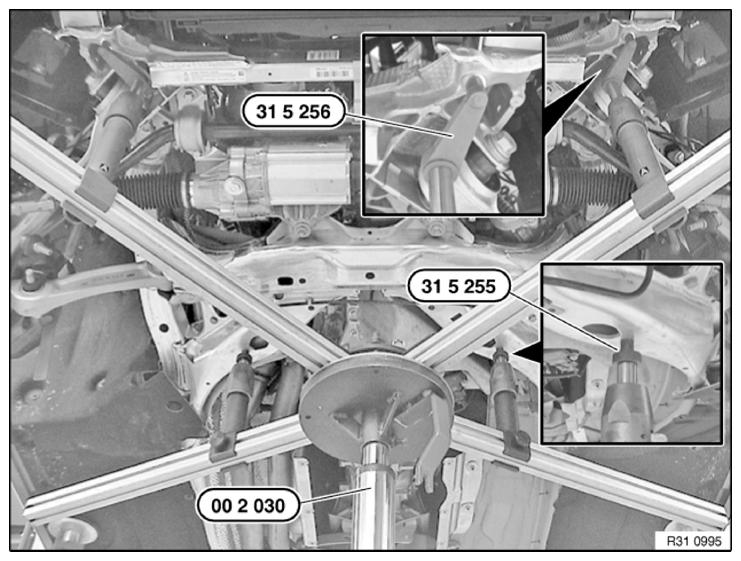

Fig 10: Aligning Special Tools 31 5 255 And 31 5 256 With Front Axle Support

Courtesy of BMW OF NORTH AMERICA, INC.

The mounting points on the left side are shown:

Align special tools 31 5 255 and 31 5 256 with the front axle support.

Support front axle support by operating workshop jack 00 2 030 .

IMPORTANT: Risk of damage!
When lowering and raising, pay attention to routing of electrical cables!
Lines must not be damaged!
Hydraulic lines (Dynamic Drive) must not be kinked/stretched and bent.
If necessary, detach hydraulic line from mounting.

Release screws (1, 2).

Tightening torque 31 10 1AZ .

Installation note:

Check threads for damage; if necessary, repair with HELICOIL THREAD INSERTS .

M12x1.5x65 screw
M12x1.5x95 screw

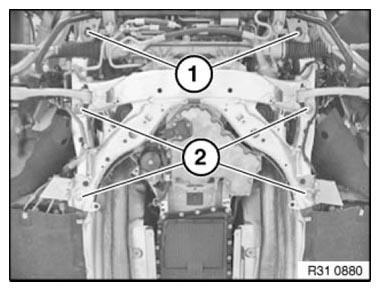

Fig 11: Identifying Transmission Cross Member Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down first screws (1) and then screws (2).

IMPORTANT: Risk of damage!

Lower front axle support by no more than 10 cm.
