37 11 030 Removing and installing front left or right spring strut

Necessary preliminary tasks:

• Remove FRONT WHEEL
• Remove upper wishbone  . See 31 12 002 REMOVING AND INSTALLING/REPLACING TOP LEFT WISHBONE  or 31 12 003 REMOVING AND INSTALLING/REPLACING TOP RIGHT WISHBONE  from swivel bearing
• Remove ANTI-ROLL BAR LINK FROM SPRING STRUT

Release screws (1).

Fig 1: Identifying Spring Strut Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Turn support bearing up to stop in clockwise direction and tighten.

Clean contact surface in spring strut dome.

Tightening torque 31 31 1AZ .

Fig 2: Turning Support Bearing Clockwise

Courtesy of BMW OF NORTH AMERICA, INC.

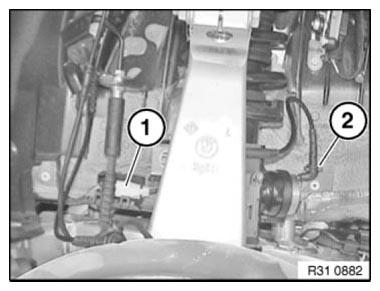

Disconnect plug connection (1).

Disconnect feed line (2) from mounting.

Fig 3: Identifying Feed Line And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove screw.

Release spring strut from wishbone (2).

Installation note:

Replace screw and nut.

Note direction of insertion of screw.

Adhere to the assembly sequence.

Tightening torque 31 12 7AZ .

Fig 4: Identifying Spring Strut, Wishbone And Mounting Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Remove spring strut downwards out of wheel arch.

Fig 5: Identifying Spring Strut

Courtesy of BMW OF NORTH AMERICA, INC.
