Drive Shaft

The E90 utilizes a two piece steel drive shaft with a deformation element (collapsing tube similar to E60).

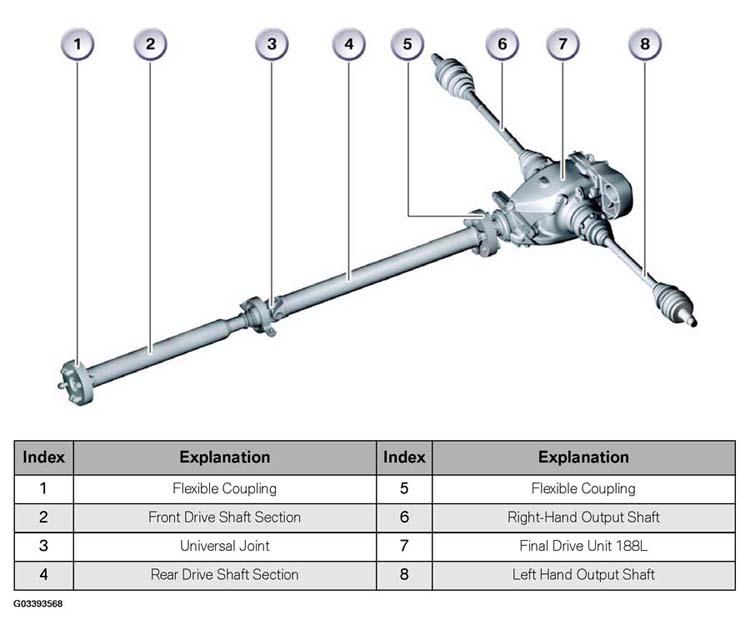

Fig 1: Identifying Components Drive Shaft

G03393568

Courtesy of BMW OF NORTH AMERICA, INC.
