Purpose of the System: Notes

To provide the "sporty" power, the E85 is equipped with either the M54B25 or M54B30 engine. The M54 engine is adapted for use in the E85 and the changes include:

• Engine peripherals:
  • Cooling system
  • Exhaust system
  • Secondary air system
  • Fresh air system
  • Ancillary components and belt drive
• MS45 Engine Management System
• Fuel system

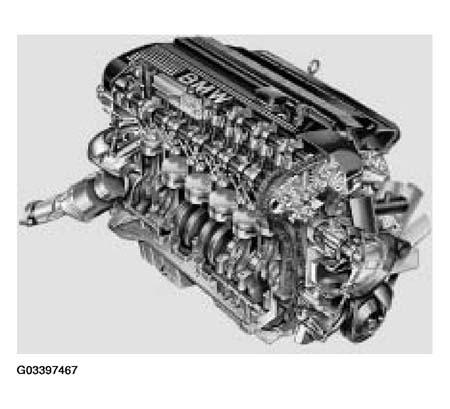

  Fig 1: Identifying Engine

  Courtesy of BMW OF NORTH AMERICA, INC.
