Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|

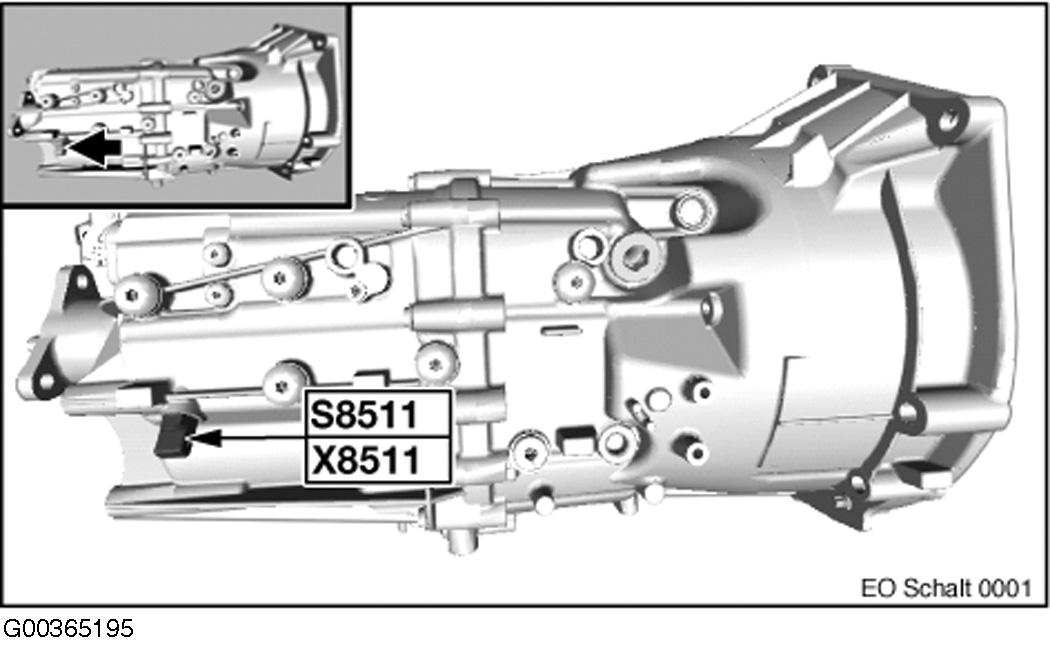

| Backup Light Switch (8511) | Right rear side of transmission. See Figure. |

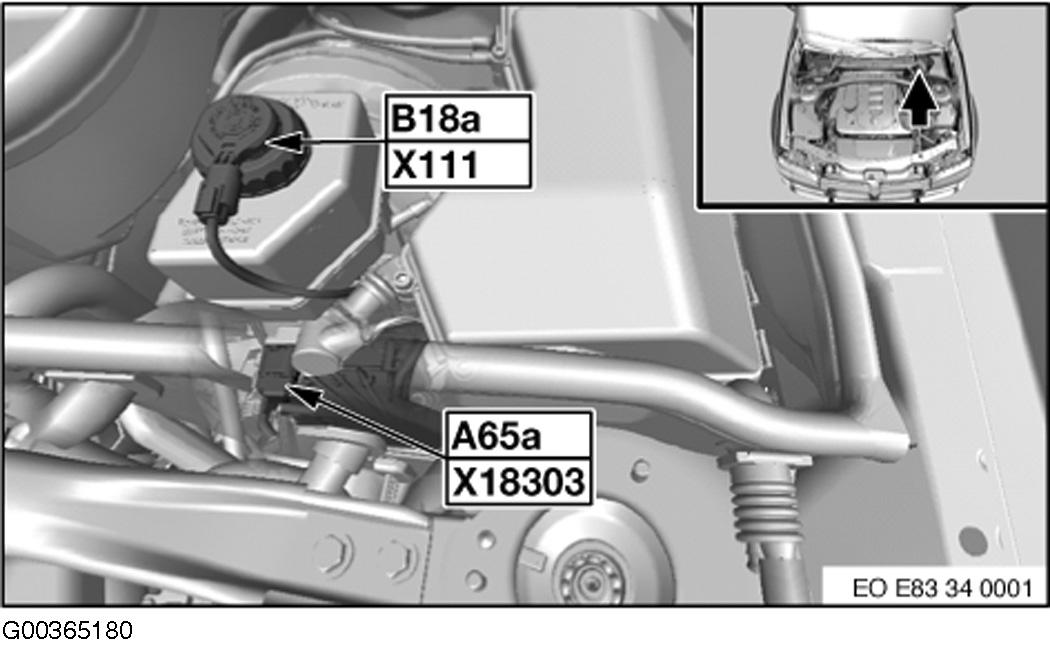

| Brake Fluid Level Switch (B18a) | Left rear engine compartment. See Figure. |

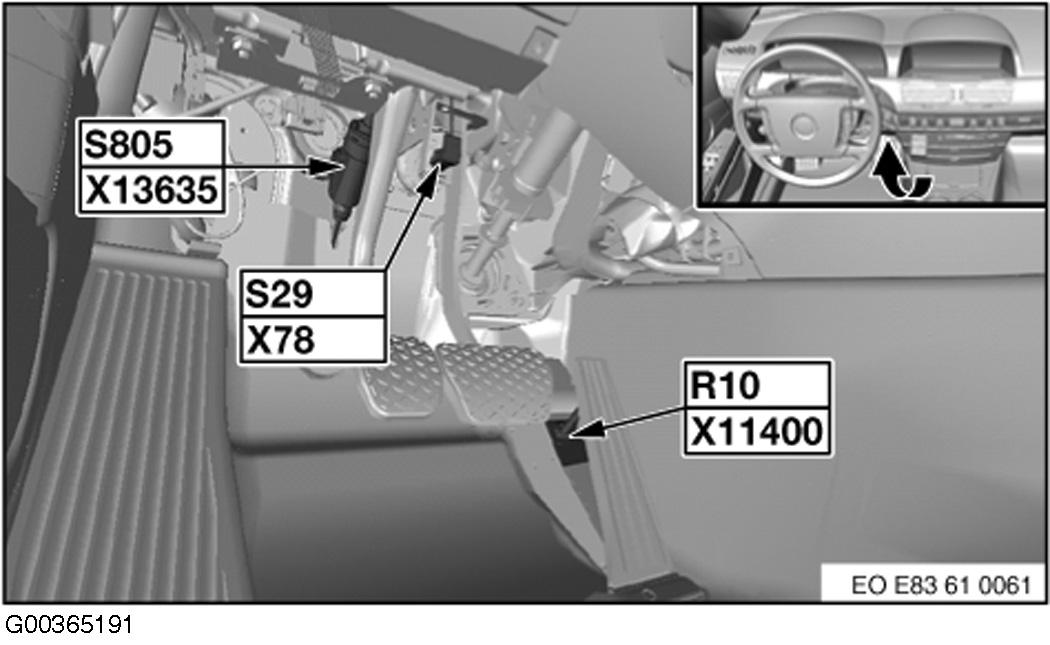

| Brake Light Switch (29) | Under left side of dash. See Figure. |

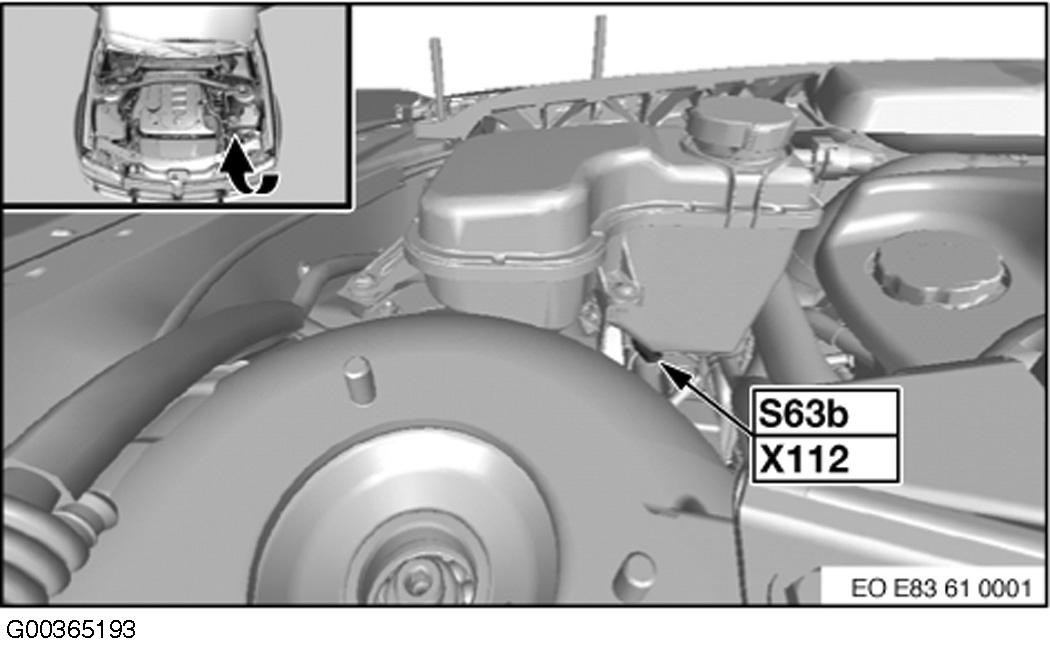

| Coolant Level Switch (S63b) | Left front engine compartment. See Figure. |

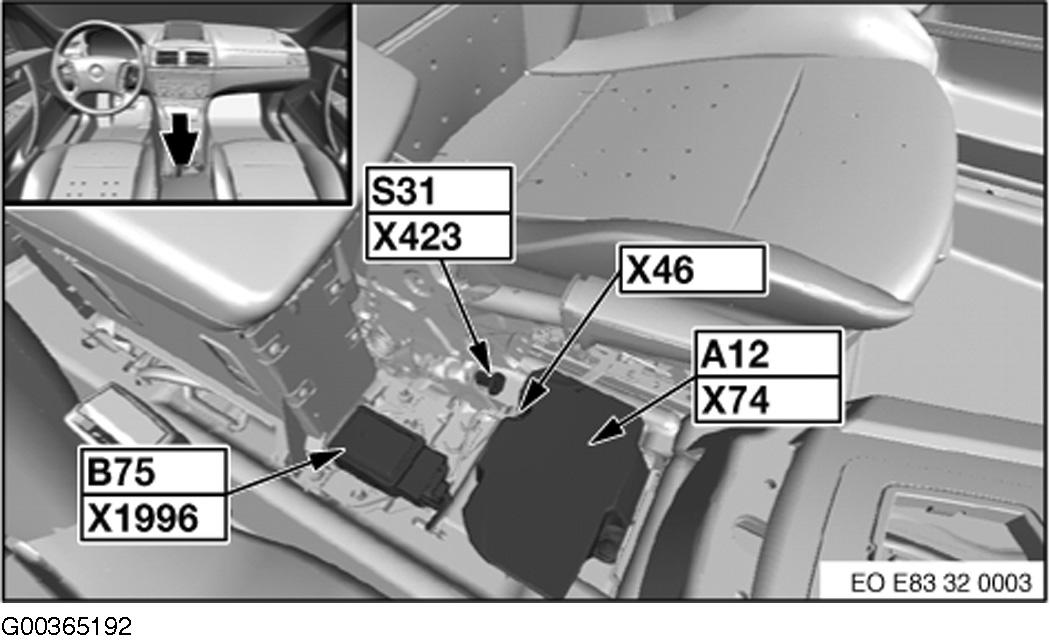

| Park Brake Switch (S31) | Rear center console. See Figure. |

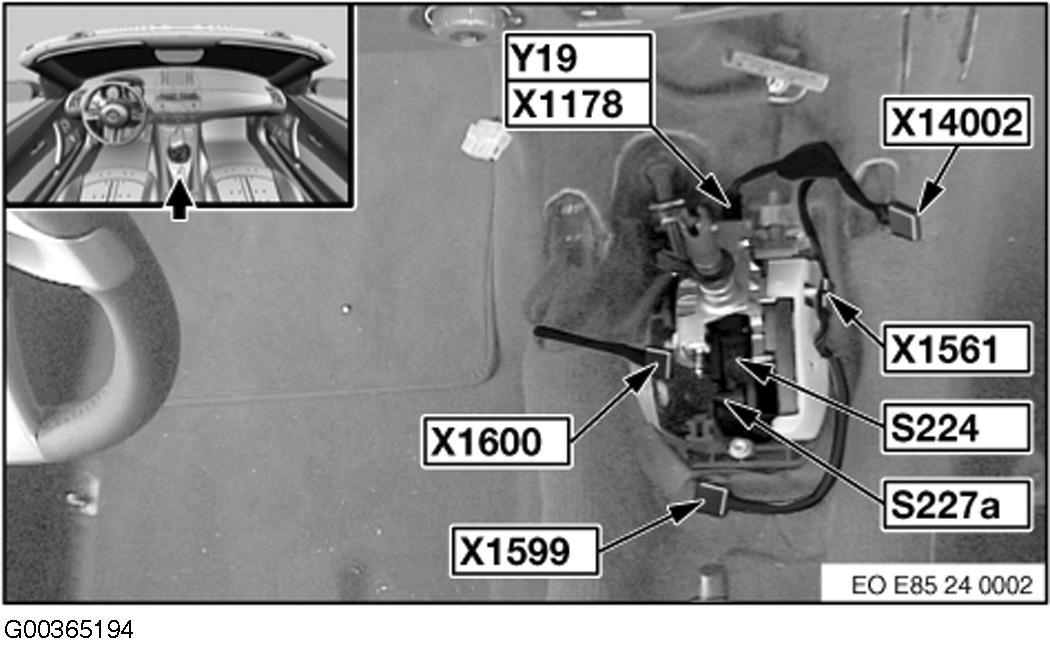

| Selector Lever Position Switch (S227a) | Center console. See Figure. |
