SIA IV Service Interval Indicator: Notes

The BMW maintenance system SIA IV (service interval indicator) is used in the E83. The service interval indicator is a system subject to constant development which in its development stages has been integrated in various model series such as the E85 and E46.

The service interval indicator appears in the LC display in the instrument cluster's speedometer. The indicator is shown for five seconds in the LC display after terminal R "ON".

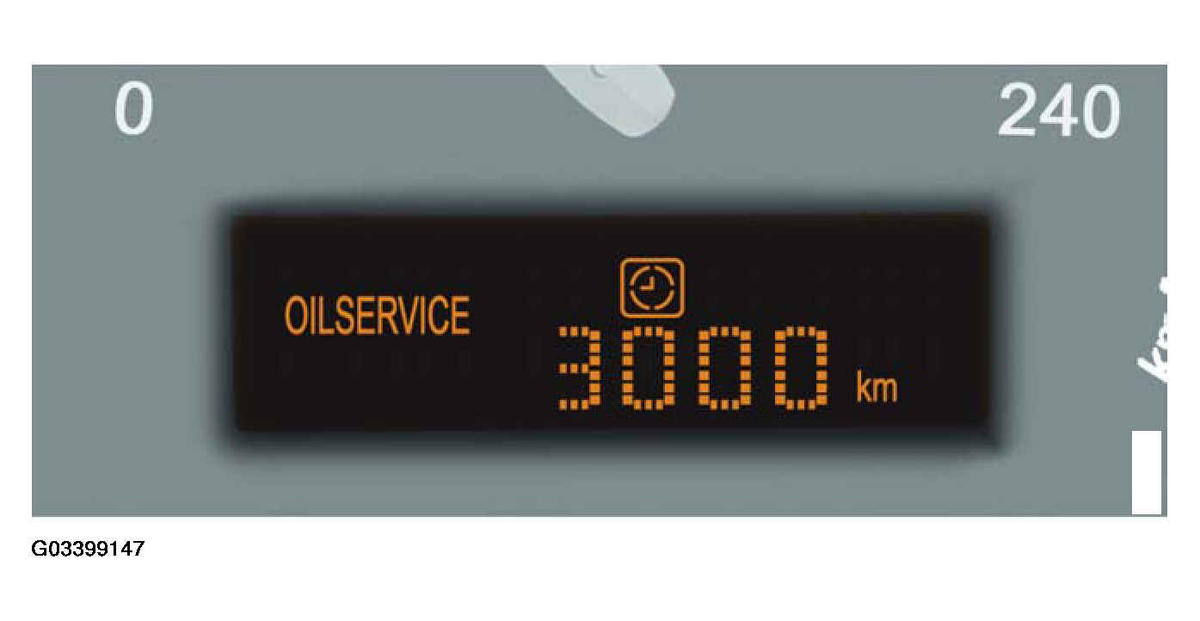

Fig 1: Identifying SIA IV Service Interval Indicator
G03399147Courtesy of BMW OF NORTH AMERICA, INC.
