Flow Chart Of The Outside Temperature Sensor Monitoring (Plausibility Check)

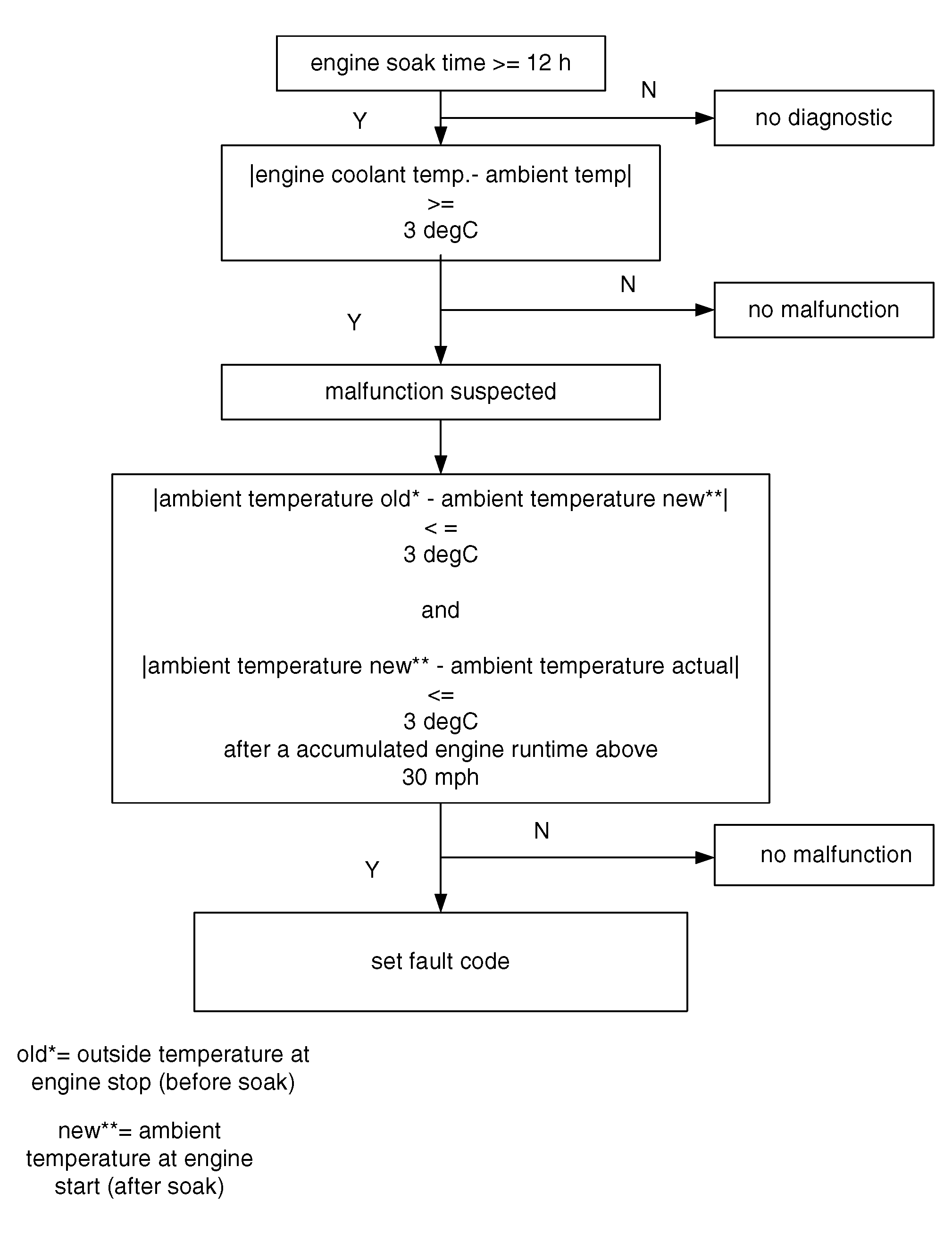

Fig 1: Flow Chart - Outside Temperature Sensor Monitoring (Plausibility Check)
G04562154Courtesy of BMW OF NORTH AMERICA, INC.
