Monitoring Structure Of Secondary Air System Monitoring

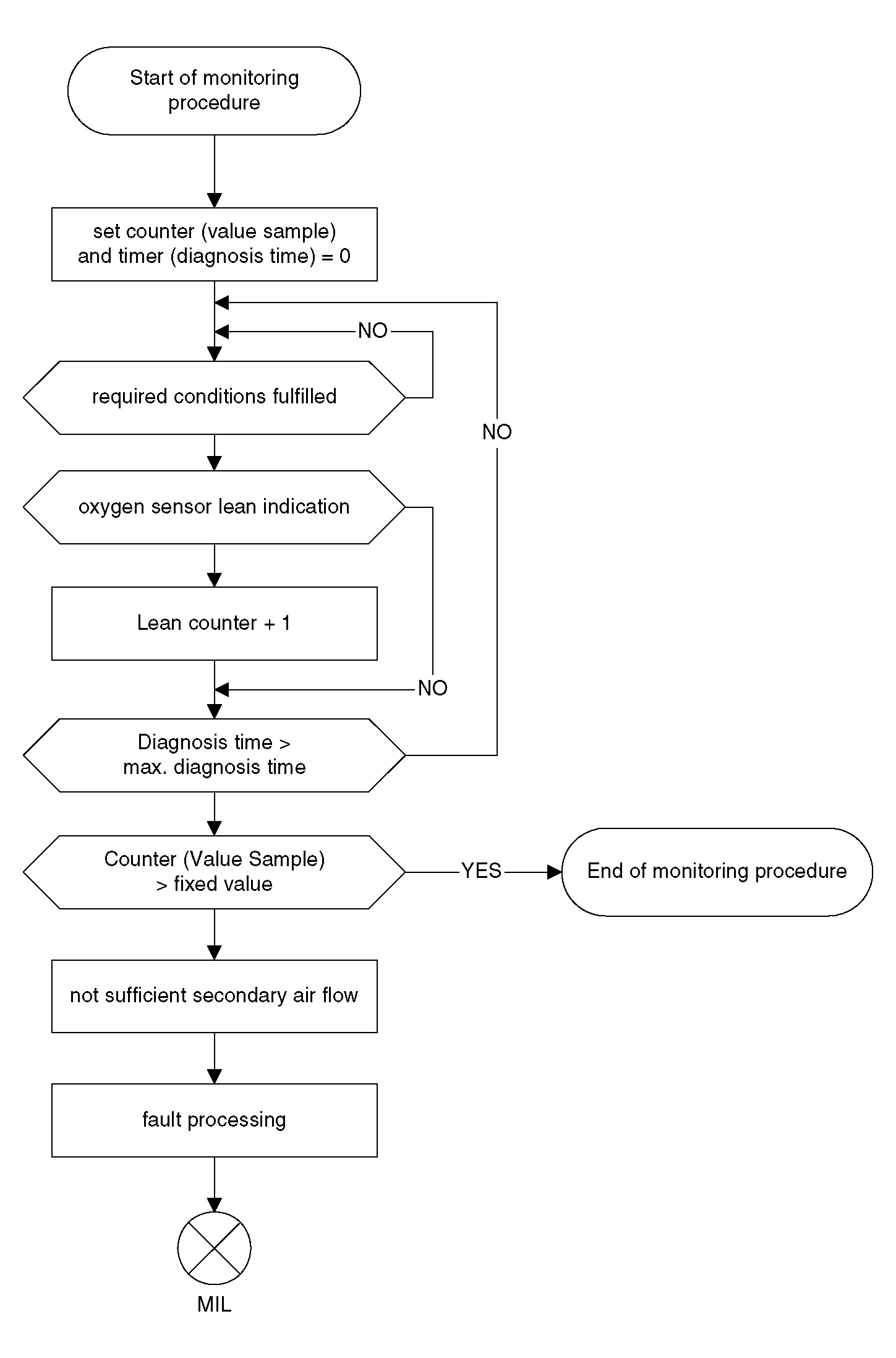

Fig 1: Flow Chart - Monitoring Structure Of Secondary Air System Monitoring

G04562146

Courtesy of BMW OF NORTH AMERICA, INC.
