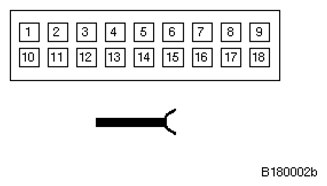

Navigation Computer X1313 Connector End View
Pin Assignments At Plug Connector X1313
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Terminal 30 | Fuse F41 |
| 2 | Not used | ||
| 3 | E/A | K-bus signal | K-bus connector |
| 4 | Not used | ||
| 5 | A | Navigation signal | On-board monitor control unit |
| 6 | A | Navigation signal | On-board monitor control unit |
| 7 | A | Navigation signal | On-board monitor control unit |
| 8 | Not used | ||
| 9 | A | AF signal Positive activation | Radio control unit |
| 10 | M | Ground | Ground point |
| 11 | Not used | ||
| 12 | A | Navigation signal | On-board monitor control unit |
| 13 | Not used | ||
| 14 | A | Shield | On-board monitor control unit |
| 15 | A | Shield | On-board monitor control unit |
| 16 | A | Shield | On-board monitor control unit |
| 17 | Not used | ||
| 18 | A | AF signal Negative activation | Radio control unit |
