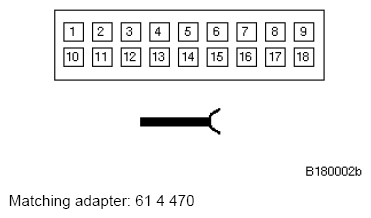

Navigation Computer X1312 Connector End View
Pin Assignments At Plug Connector X1312
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Signal Back-up light switch | Connector Back-up light switch |
| 2 | Not used | ||
| 3 | Not used | ||
| 4 | Not used | ||
| 5 | Not used | ||
| 6 | Not used | ||
| 7 | Not used | ||
| 8 | Not used | ||
| 9 | Not used | ||
| 10 | E | Signal Processed wheel speed, rear left | ABS/ASC unit ABS/DSC unit |
| 11 | Not used | ||
| 12 | Not used | ||
| 13 | Not used | ||
| 14 | Not used | ||
| 15 | Not used | ||
| 16 | Not used | ||
| 17 | Not used | ||
| 18 | Not used |
