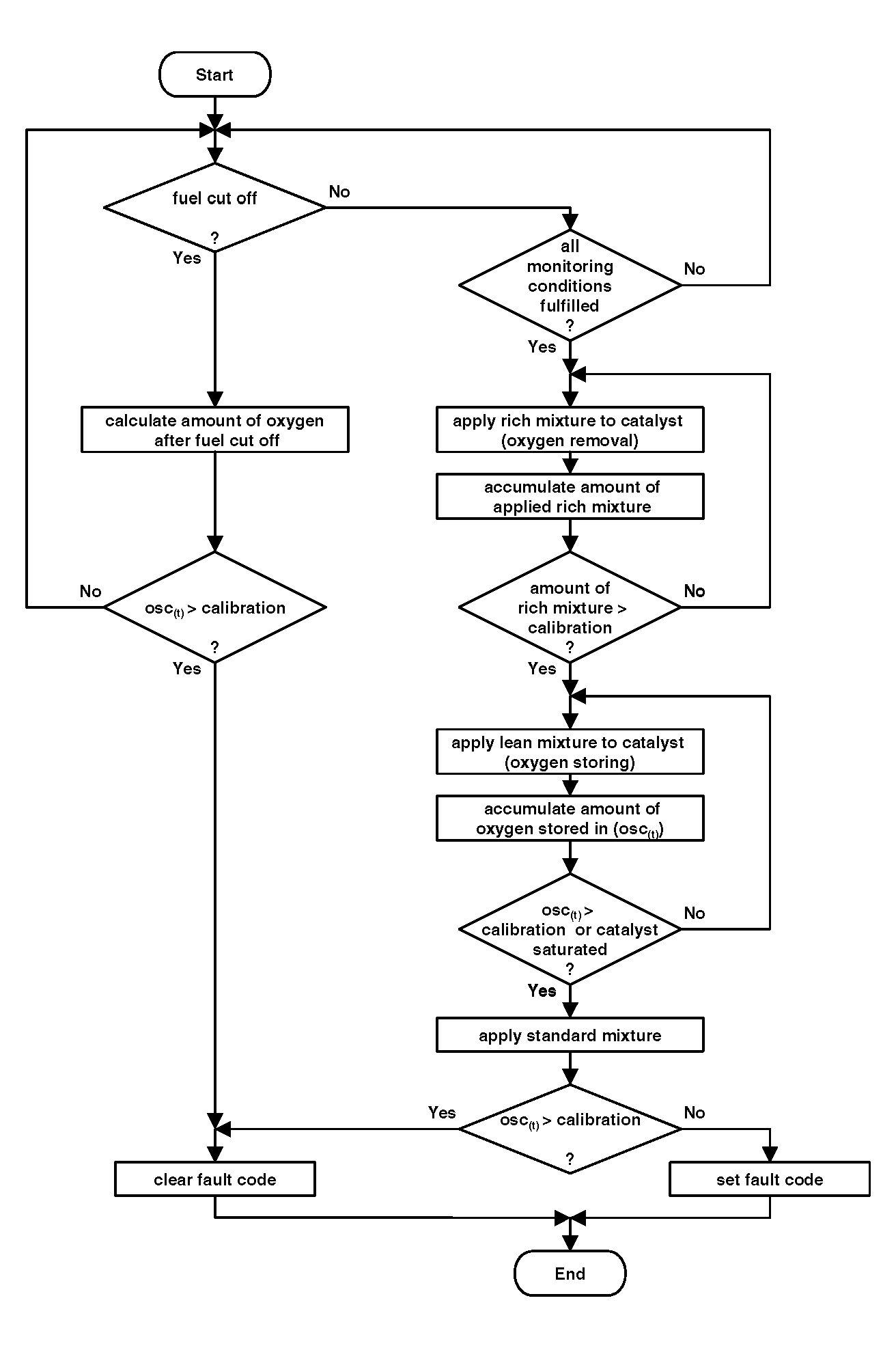

Home >> BMW >> 2005 >> 745Li >> Repair and Diagnosis >> Engine Performance >> System >> Diagnostic Trouble Codes With Test Charts (V8) >> Test Group Identification >> Catalyst Monitoring >> Block Diagram Of System Operation
