61 35 177 Removing and installing (replacing) rain/light sensor

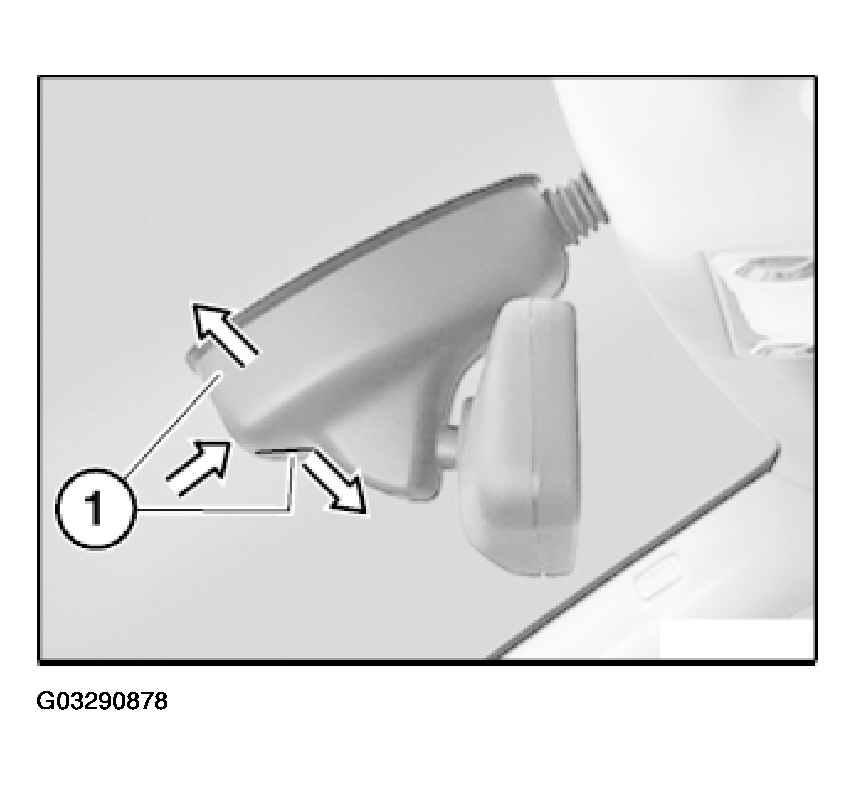

Expand two-part mirror base cover (1) by pressing from below and detach.

Fig 1: Removing Two-Part Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out two-part mirror base cover (1) and remove.

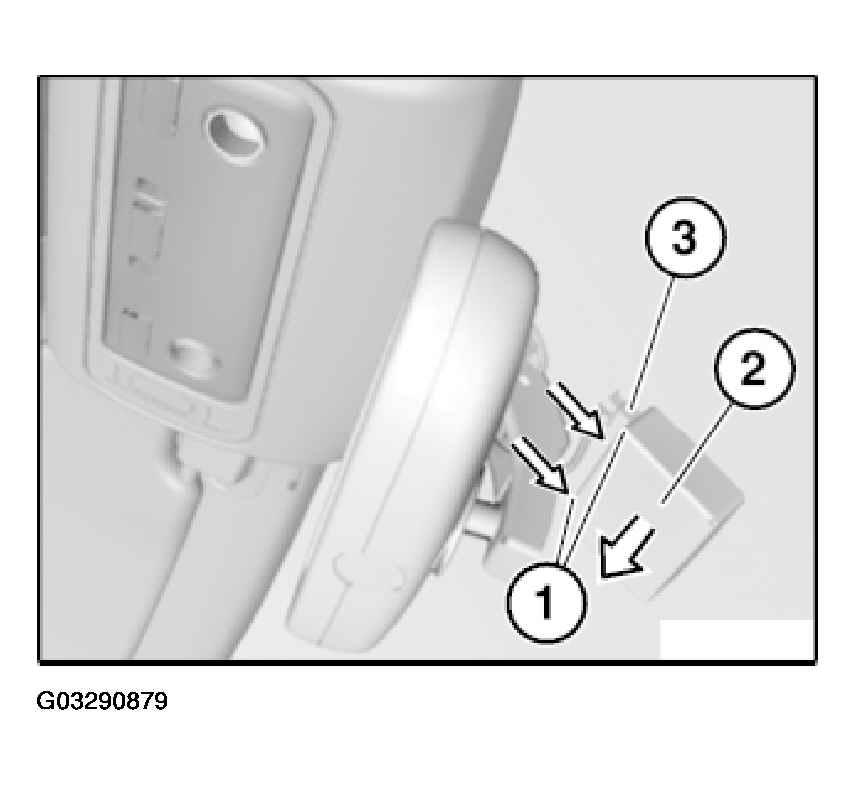

Disconnect plug connection (3).

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press locks (1) in direction of arrow and remove rain/light sensor (2) towards bottom.

Installation:

Do not damage optical element covered by rain/light sensor (2).

If necessary, initialize rain/light sensor. Refer to 61 35 679 Initializing rain/light sensor .

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

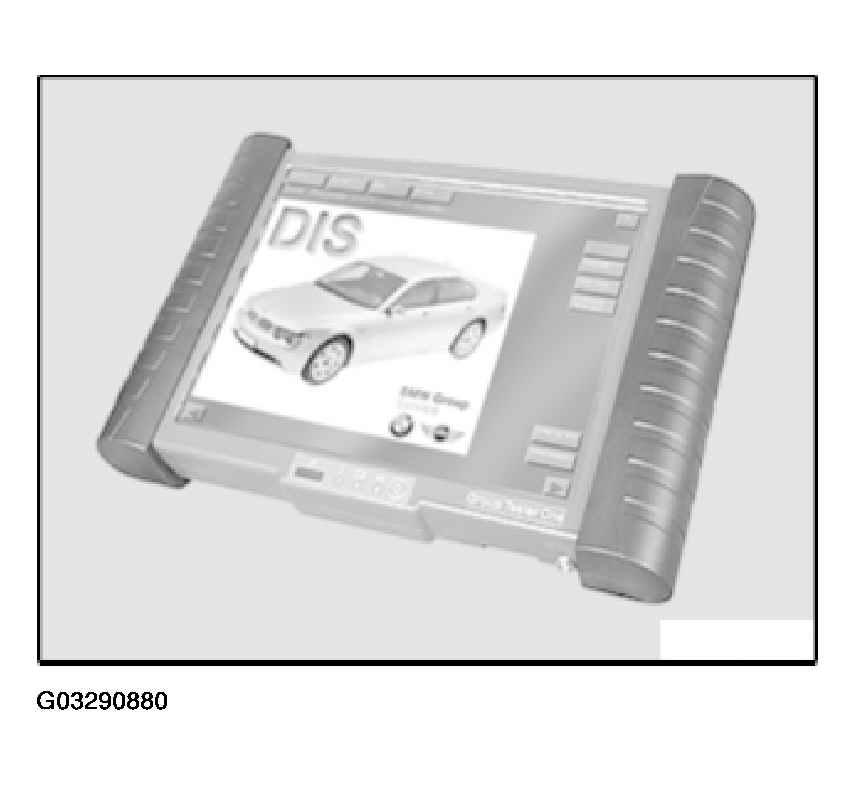

Fig 3: View Of Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
