Camber Adjustment: Front

  1. Remove protective cap. Knock out centering pin (1) in downwards direction. See Fig 1 . Clean wheel arch from below in area of support bearing with compressed air. Slacken spring strut mount-to-wheel house nut (2) about 1 1/2 turns.
  2. Insert Special Tool (32 3 190) into wheel arch opening and over nut. See Fig 2 . Replace nuts (3) and screw on but do not tighten fully. Turn nut (4) in Special Tool (32 3 190) to adjust camber to specified value. See WHEEL ALIGNMENT SPECIFICATIONS  . Maximum possible camber change is -0.3 to 0.3 degrees.
  3. Remove Special Tool (32 3 190). Replace nut (2) for spring strut mount-to-wheel house. See Fig 1 . Tighten to specification. See TORQUE SPECIFICATIONS  .
  4. Check and adjust toe-in. See FRONT  under TOE-IN ADJUSTMENT.

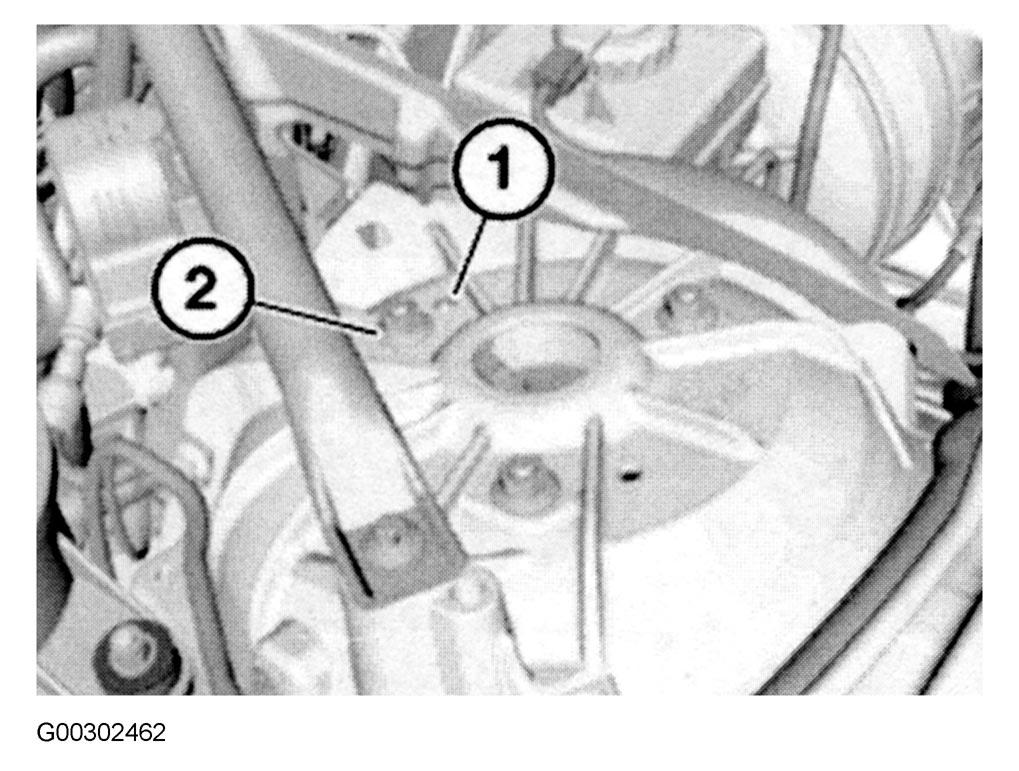

Fig 1: Locating Centering Pin
G00302462Courtesy of BMW OF NORTH AMERICA, INC.

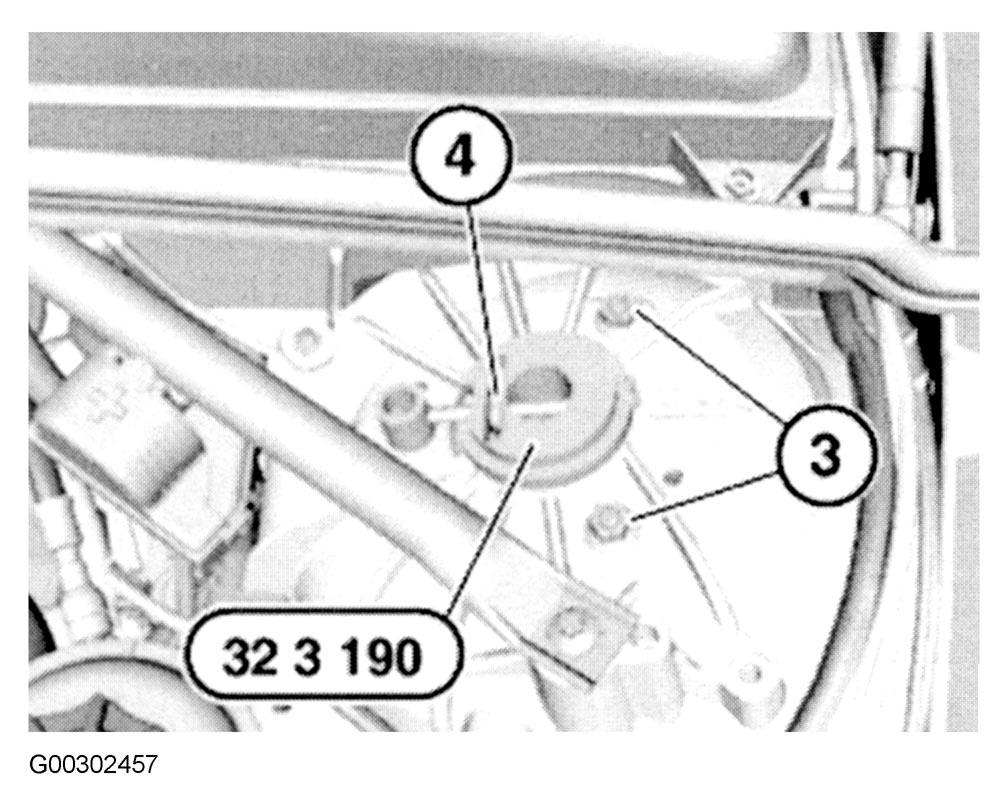

Fig 2: Adjusting Camber
G00302457Courtesy of BMW OF NORTH AMERICA, INC.
