61 31 195 Removing and installing (replacing) front controller

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!
The button for the controller must not be removed!

Necessary preliminary work:

REMOVE CENTER CONSOLE TRIM

Removal:

Release all screws (1).

Remove controller (2) from center console trim (3).

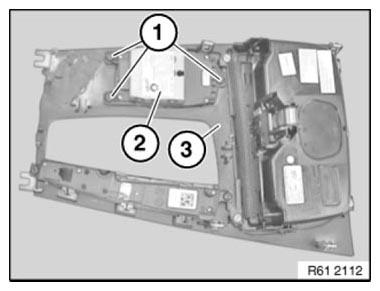

Fig 1: Identifying Controller, Center Console Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mount controller (2) on center console trim (3) and tighten with screws (1).

Tightening torque 61 31 2AZ .

Fig 2: Identifying Controller, Center Console Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .

Required follow-up work:

REMOVE CENTER CONSOLE TRIM
