61 31 134 Removing and installing/replacing USB audio interface connecting socket

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR CENTER CONSOLE TRIM

NOTE: For purposes of clarity, picture shows storage compartment removed.

Unlock retaining lugs (1).

Push out connecting socket (2) from storage compartment (3) in direction of arrow.

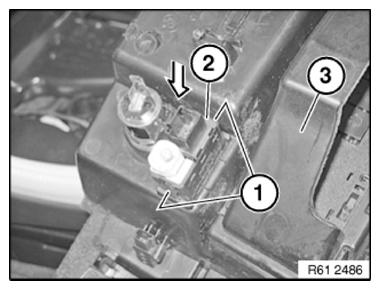

Fig 1: Pushing Connecting Socket From Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) must not be damaged
Make sure connecting socket (2) is correctly seated in storage compartment (3)
