61 13 042 Replacing power distribution box (luggage compartment)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe SAFETY INFORMATION
for handling the battery.
Necessary preliminary tasks:
- Disconnect BATTERY CABLE
- Partially remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON RIGHT
- F11 only: Remove flap in right luggage compartment wheel arch trim panel.

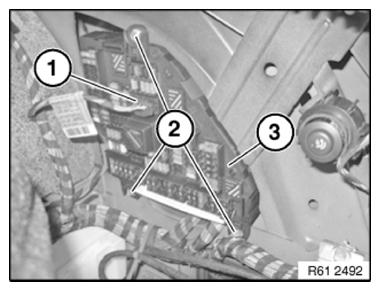

Unfasten plug connection (1) and disconnect.
Unscrew nuts (2).
Remove power distribution box (3).

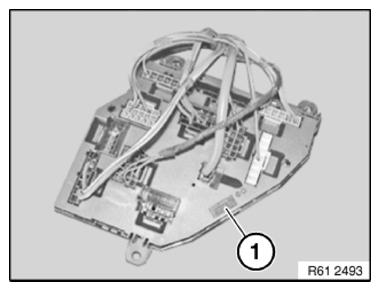

Unlock all plug connections and disconnect.
Remove power distribution box (1).
Installation note:
Ensure correct cable routing.
Ensure that the power distribution box (1) is correctly seated.
