61 31 544 Replacing roof switch cluster (roof function center)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Only new parts may be used for replacement (repair kit)*.
*Sourcing reference: BMW Parts Catalogue

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

Necessary preliminary work:

Remove ROOF SWITCH CLUSTER

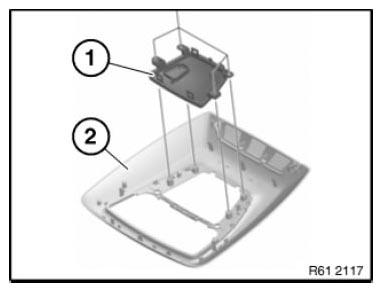

Secure switch unit (1) to cover (2).

Fig 1: Securing Switch Unit To Cover

G08509825

Courtesy of BMW OF NORTH AMERICA, INC.

Clip light unit (1) into cover (2).

Fig 2: Identifying Clip Light Unit Into Cover

G06895068

Courtesy of BMW OF NORTH AMERICA, INC.

Insert retaining lugs on switching mat (1) correctly into designated guides on board (2).

Connect USIS sensor plug connections (3) to board (2).

NOTE: USIS sensors (3) are used only when antitheft alarm system is fitted.

Fig 3: Connecting USIS Sensor Plug Connections To Board

G06895069

Courtesy of BMW OF NORTH AMERICA, INC.

Insert USIS sensors (1) in direction of arrow into frame (2).

NOTE: USIS sensors (1) are used only when antitheft alarm system is fitted.

Fig 4: Inserting USIS Sensors Into Frame

G06895070

Courtesy of BMW OF NORTH AMERICA, INC.

Clip frame (1) into cover (2).

Fig 5: Identifying Clip Frame Into Cover

G06895071

Courtesy of BMW OF NORTH AMERICA, INC.

Turn board (1) over in direction of arrow and connect plug connection (2) to board (1).

Fig 6: Connecting Plug Connection To Board

G06895072

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 08/2009:

Rotate PCB (1) in direction of arrow.

Wind cable (2) in direction of arrow and connect with PCB (1).

Fig 7: Winding Cable With PCB

G06895073

Courtesy of BMW OF NORTH AMERICA, INC.

Clip board (1) onto frame (2).

Installation note:

Make sure guide (3) is correctly seated in frame (2).

Fig 8: Identifying Clip Board Onto Frame

G06895074

Courtesy of BMW OF NORTH AMERICA, INC.

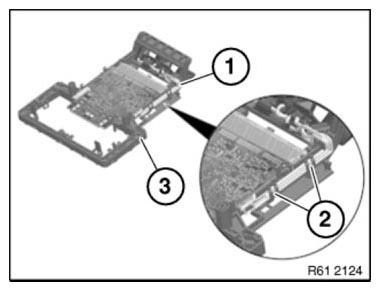

Installation note:

If anti-theft alarm system is fitted, make sure USIS sensor lead (1) is correctly seated in retaining tabs (2) on frame (3).

Fig 9: Identifying USIS Sensor Lead

G06895075

Courtesy of BMW OF NORTH AMERICA, INC.

Clip light pressed screen (1) into light unit (2).

Installation note:

Make sure pin (3) is correctly seated on board (4).

Fig 10: Identifying Clip Light Pressed Screen Into Light Unit

G06895076

Courtesy of BMW OF NORTH AMERICA, INC.

Install bulbs (1) in light pressed screen (2).

Installation note:

Note BULB TYPE .

Fig 11: Installing Bulbs In Light Pressed Screen

G06895077

Courtesy of BMW OF NORTH AMERICA, INC.

Screw down base (1) to roof switch cluster (2).

Fig 12: Identifying Screw Down Base To Roof Switch Cluster

G06895078

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out VEHICLE PROGRAMMING/ENCODING
