61 31 118 Replacing front passenger power window switch

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT RIGHT DOOR TRIM PANEL

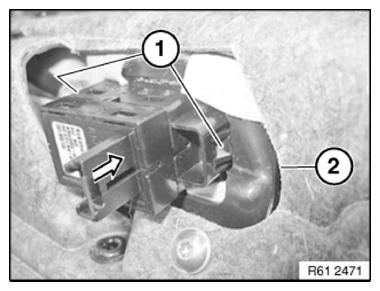

Release power window switch (1) and remove from door trim panel (2) in direction of arrow.

Fig 1: Removing Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

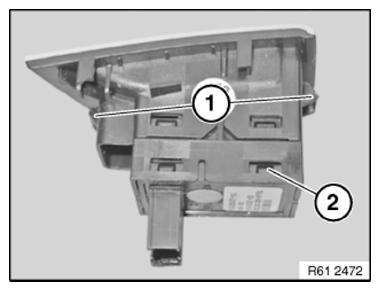

Retaining lugs (1) must not be damaged.

Make sure power window switch (2) is correctly seated.

Fig 2: Identifying Power Window Switch And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
