61 31 117 Removing and installing/replacing power window switch (driver's side)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT LEFT DOOR TRIM PANEL

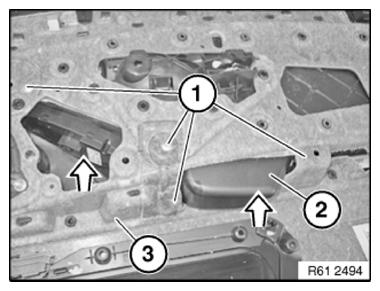

Release screws (1).

Remove ashtray trim (2) from door trim (3) in direction of arrow.

Installation:

Make sure ashtray trim (2) is correctly seated.

Fig 1: Removing Ashtray Trim From Door Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

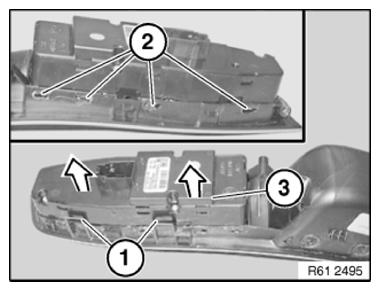

Release retaining tabs (1) and clips (2).

Remove switch (3) in direction of arrow.

Installation:

Make sure switch (3) is correctly seated.

Fig 2: Releasing Retaining Tabs And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
