61 31 014 Removing and installing/replacing Start/Stop switch
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Incorrectly installed start/stop switch may cause the start/stop switch or MSA button to jam.
In the case of a fault message "Jammed start/stop switch or MSA button" check before replacing whether the start/stop switch has been correctly installed in the cover and is de-energized!
If necessary install the existing start/stop switch again and perform a functional check!
In the case of a fault message "Jammed start/stop switch or MSA button" check before replacing whether the start/stop switch has been correctly installed in the cover and is de-energized!
If necessary install the existing start/stop switch again and perform a functional check!
Necessary preliminary tasks:

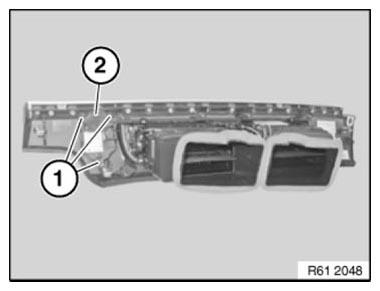

Release screws (1) and remove Start/Stop switch (2).
Installation note:
Only F10/F11/F12/F13/F18:

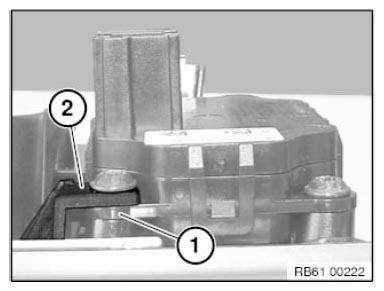

The tab of the start/stop switch (1) be installed below the tab (2)!
