Car Communication Computer: Components

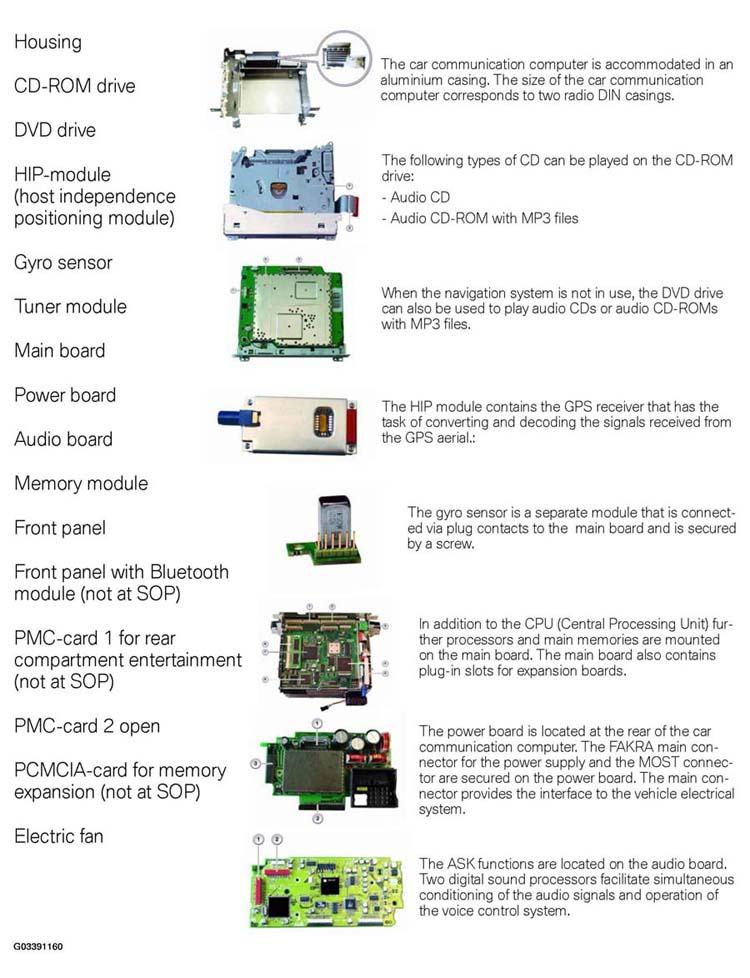

Fig 1: Identifying Control Unit Components
G03391160Courtesy of BMW OF NORTH AMERICA, INC.

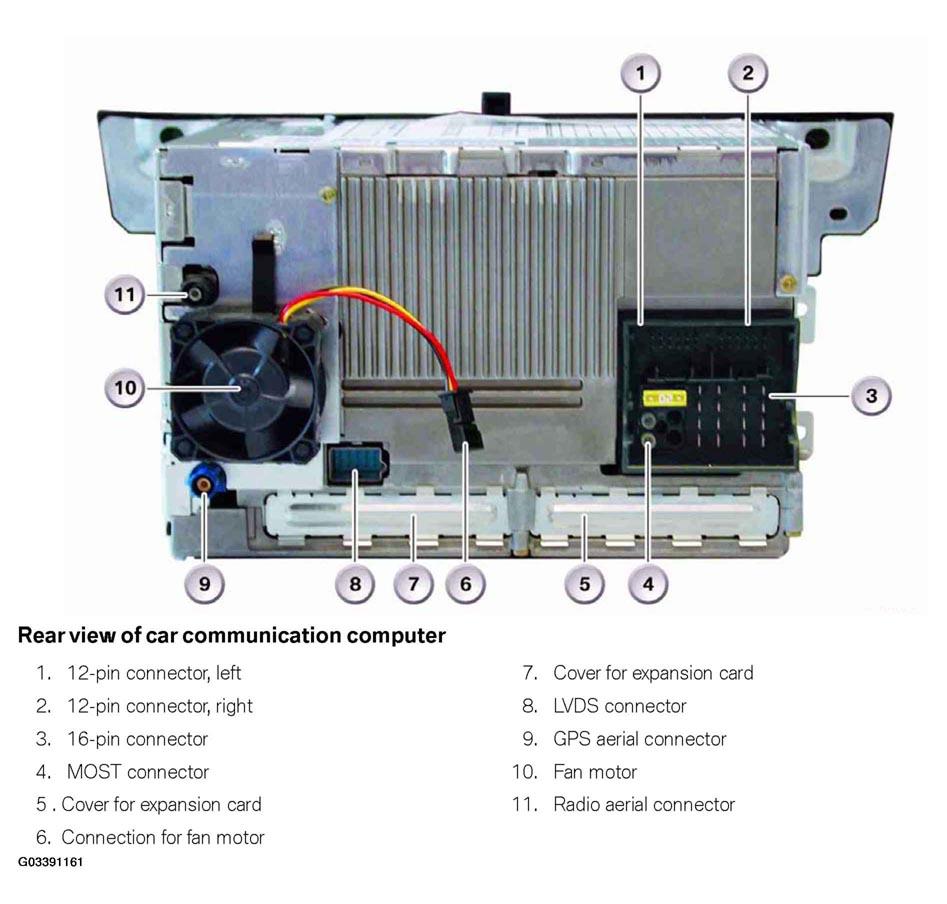

Fig 2: Identifying Car Communication Computer Connectors And Connections
G03391161Courtesy of BMW OF NORTH AMERICA, INC.

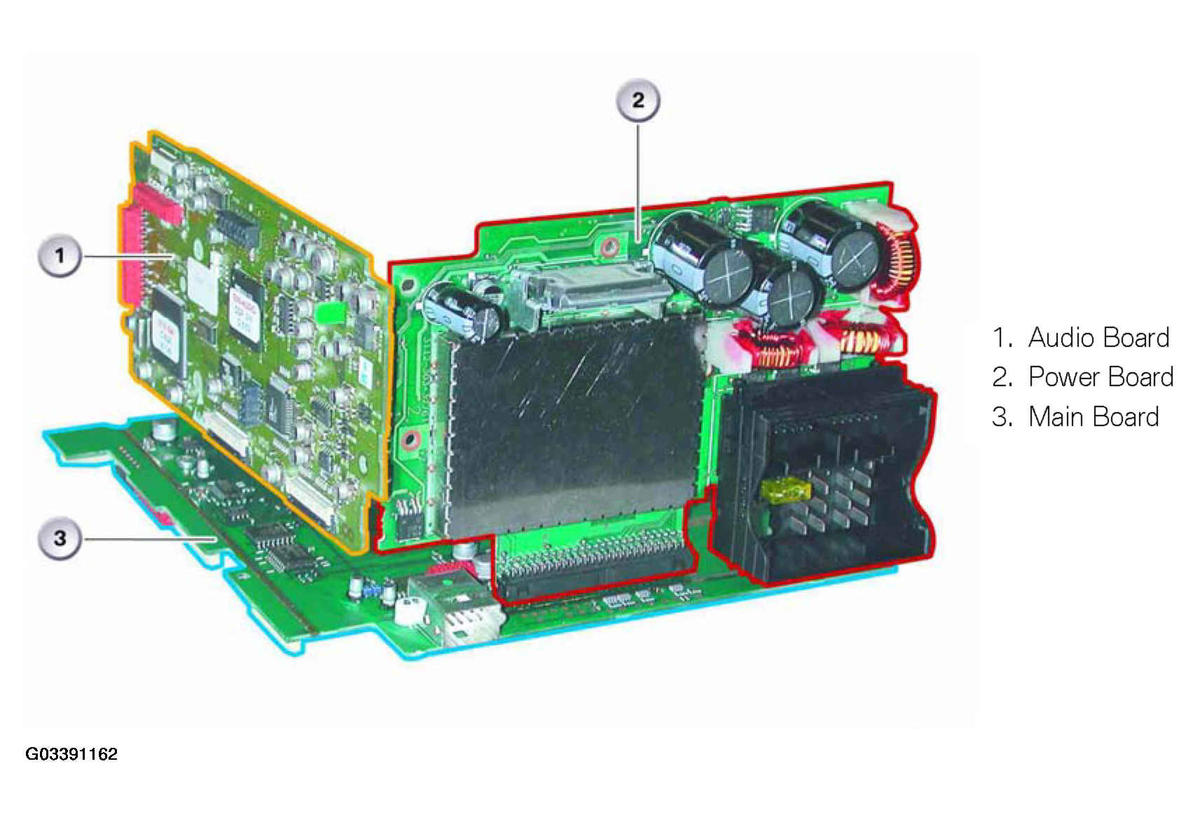

Fig 3: Identifying Audio Board, Power Board And Main Board
G03391162Courtesy of BMW OF NORTH AMERICA, INC.
