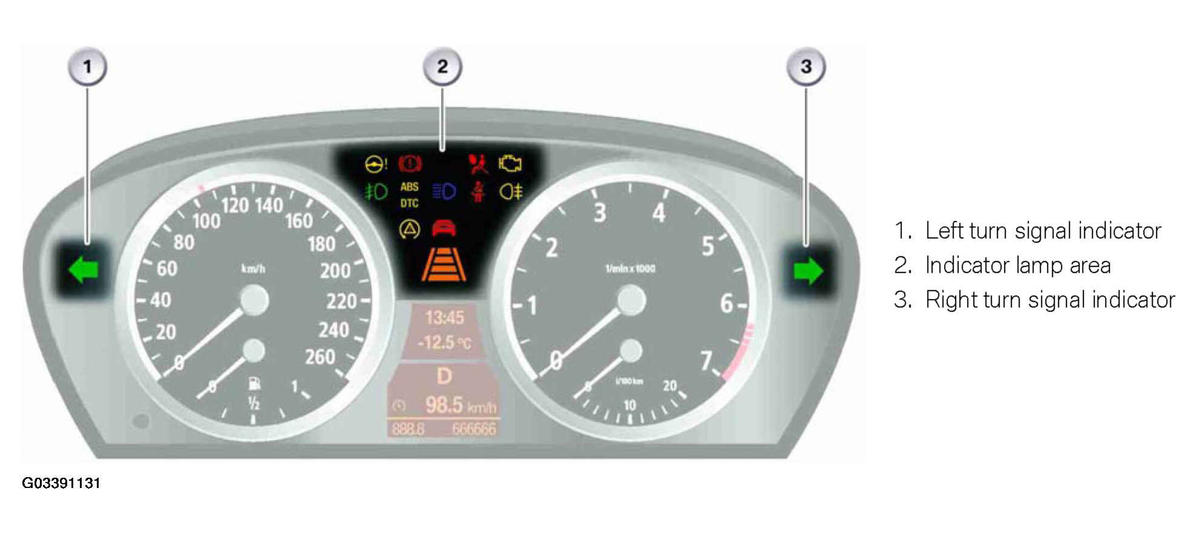

Indicators And Warning Lamps
The indicator and warning lamps are activated by the processor in the instrument cluster.
The main indicator and warning lamps are activated in the Pre-drive Check when terminal 15 is switched on. The indicator lamps and warning symbols are lit by soldered-in LEDs (replacement of LEDs not possible).
