13-8020 Measuring device

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0491361 138020 Measuring device MW

NOTE: (Measuring device) With connection parts for checking and adjusting the low pressure regulator [Discontinued]

SI number: 01 14 95 (014)

Consisting of:

= 0491362 Measuring device
NOTE: (Measuring device) Without adapter hoses [Discontinued]

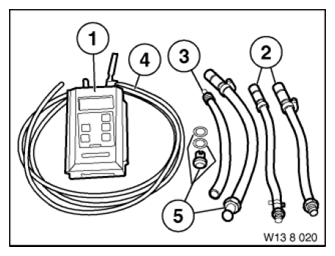

Fig 1: Identifying Measuring Device (0491361)
Courtesy of BMW OF NORTH AMERICA, INC.
= 0491363 Adapter
NOTE: (Adapter hose (2 pieces)) With M6 connecting nipple and quick-release coupling {Discontinued]
= 0491364 Adapter
NOTE: (Adapter hose) With counterpiece for quick-release coupling [Discontinued]
= 0491365 Adapter
NOTE: (Adapter hoses) With T-piece for intake pressure connection [Discontinued]
= 0491366 Adapter
NOTE: (Adapter hose) With quick-release coupling and ring connection with banjo bolt for testing the output pressure at the metering unit [Discontinued]
