MRS III I-P-O

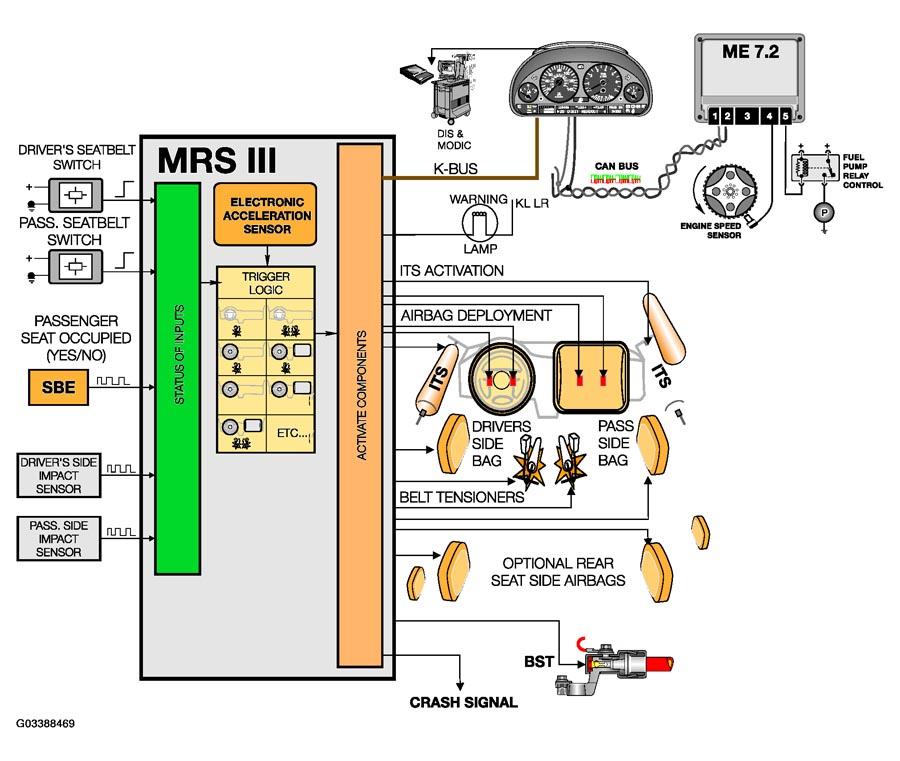

Fig 1: Identifying MRS III I-P-O Communication Diagram

G03388469

Courtesy of BMW OF NORTH AMERICA, INC.
