Air Suspension Strut: Front

The air suspension replaces the steel suspension at the front axle, i.e. the spring bellows is attached to the damper. The front air suspension strut and the impact absorber form a complete unit.

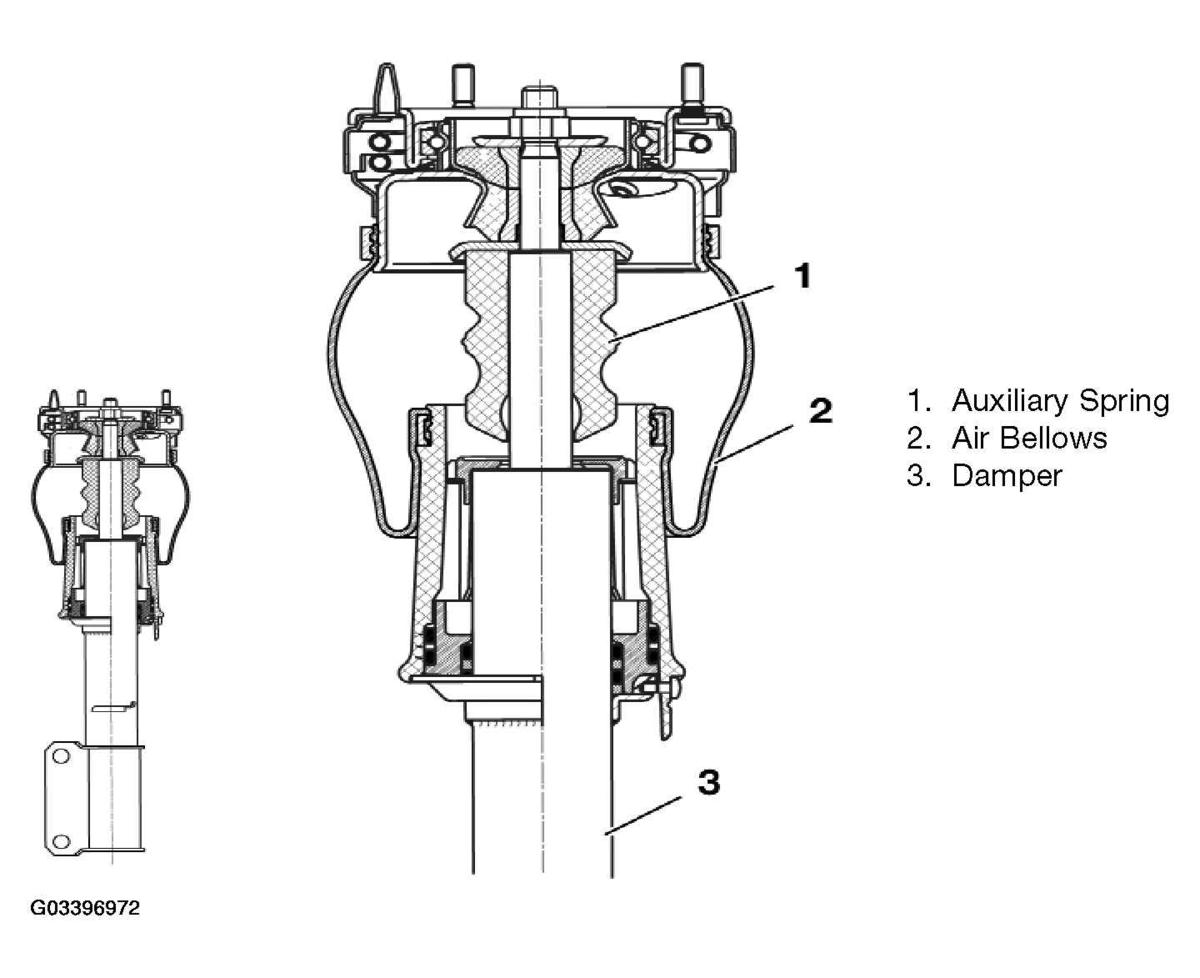

Fig 1: Sectional View Of Air Suspension Strut

Courtesy of BMW OF NORTH AMERICA, INC.
