IHKA System Auxiliary Pump

The auxiliary water pump for the IHKA is mounted on the left side of the radiator. The function of the pump remains the same as follows:

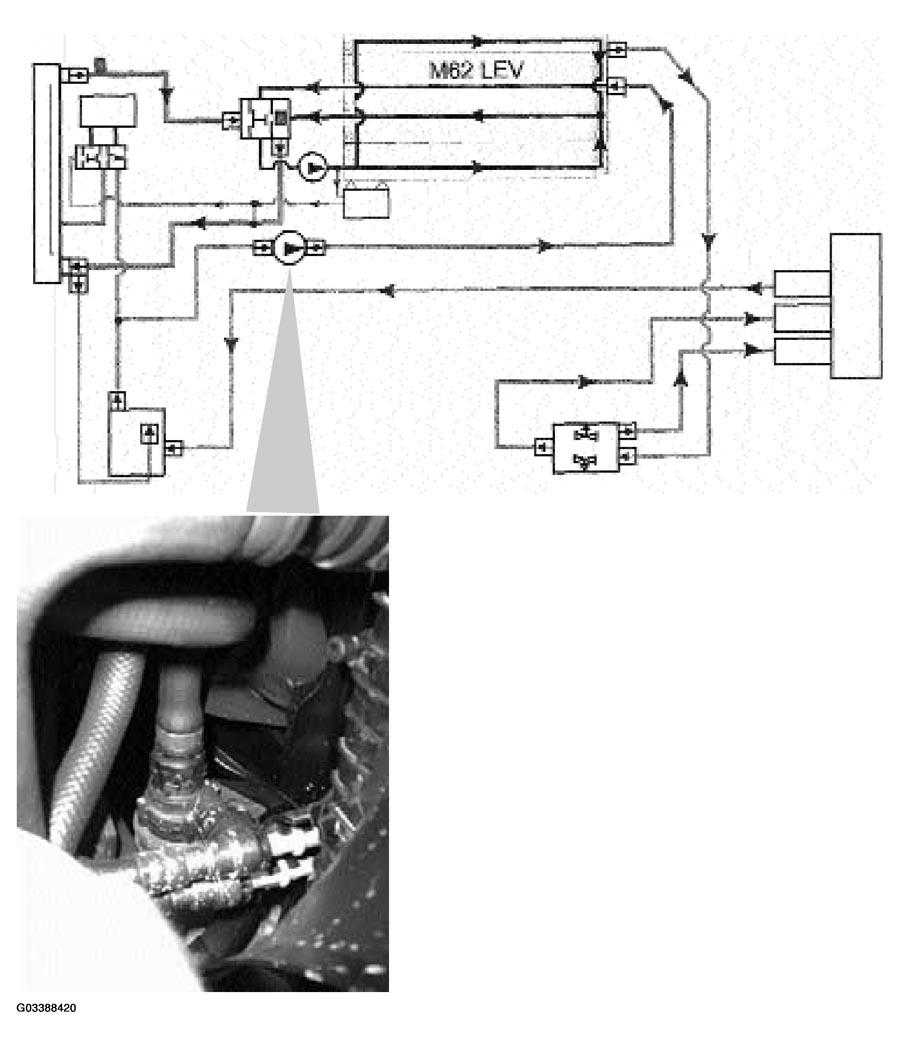

Fig 1: Identifying Auxiliary Water Pump Diagram And Location

Courtesy of BMW OF NORTH AMERICA, INC.

• provide adequate coolant flow for IHKA operation.
• provide coolant circulation for the REST function of IHKA.
