Removal & Installation

On front door, pry out door switch center in direction of arrows. Disconnect associated electrical connection(s) and remove door switch center. See Fig 1 . On rear door, pry out rocker switch for side window operation in direction of arrow. Disconnect associated electrical connection and remove rocker switch. See Fig 2 . To install, reverse removal procedure.

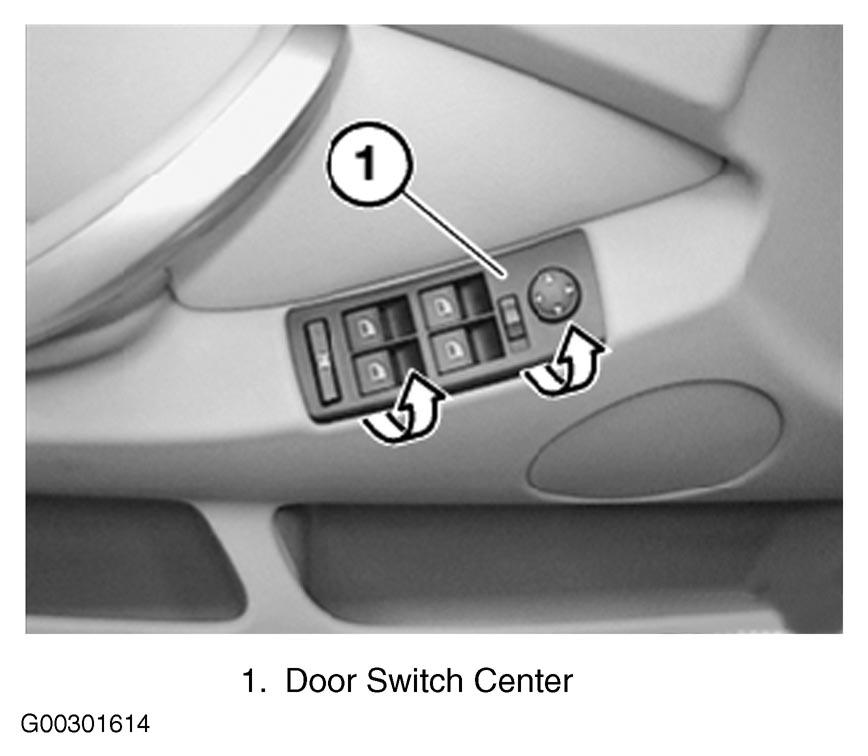

Fig 1: Removing Window Switch Assembly (Front)

Courtesy of BMW OF NORTH AMERICA, INC.

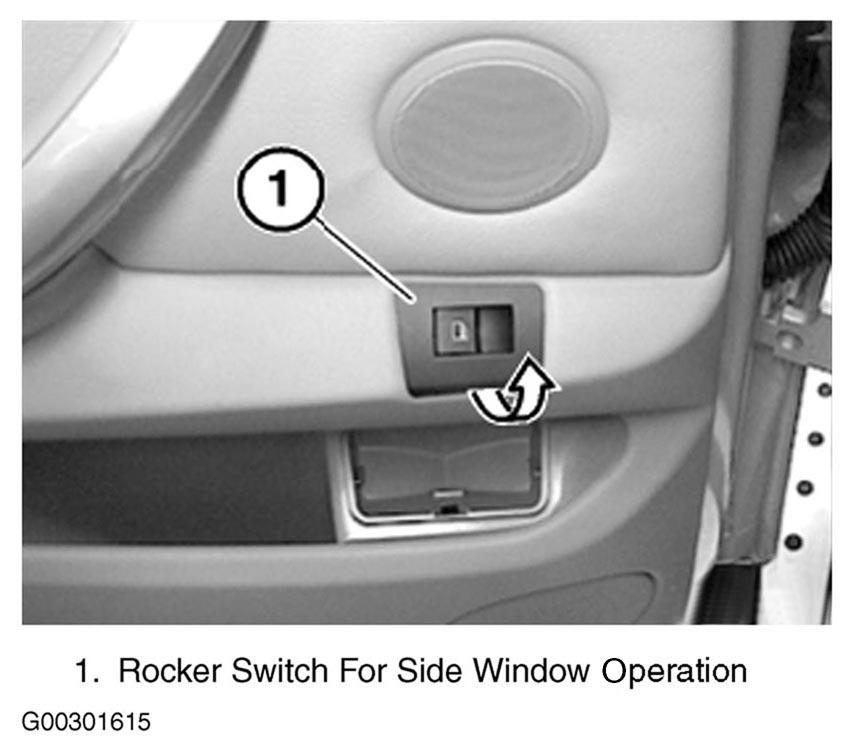

Fig 2: Removing Window Switch Assembly (Rear)

Courtesy of BMW OF NORTH AMERICA, INC.
