61 35 910 Removing and installing/replacing control unit of electronic immobilizer

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Disconnect battery negative lead
Remove trim panel for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Unfasten plug connection (1) and disconnect.

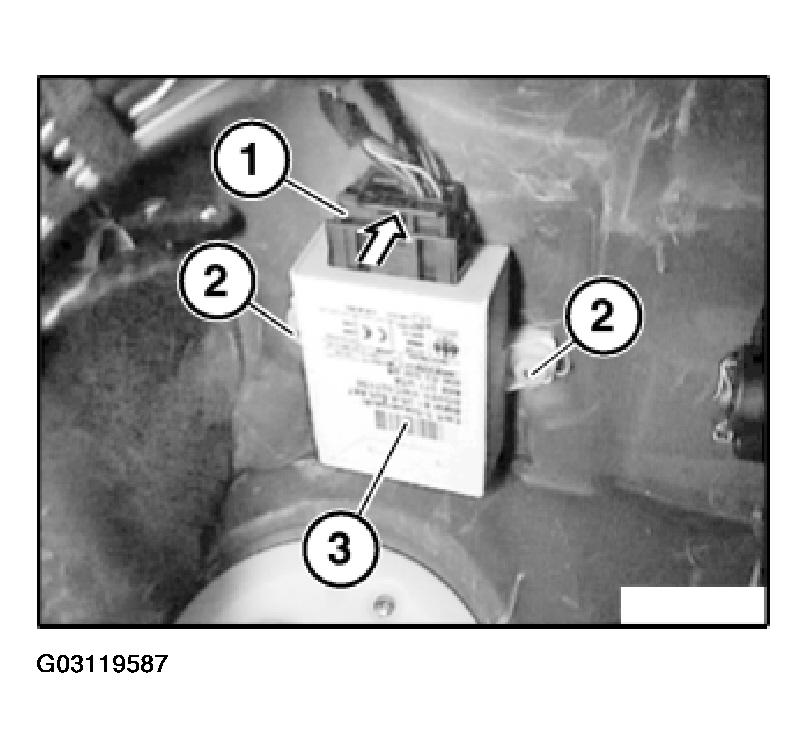

Fig 1: Removing Control Unit Of Electronic Immobilizer

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure control unit of electronic immobilizer (3) against falling out.

Release screws (2) and remove control unit of electronic immobilizer (3).

Replacement:

Carry out programming/coding. Refer to Diagnosis Programming/Coding .
