Monitoring Structure Of Secondary Air System Monitoring

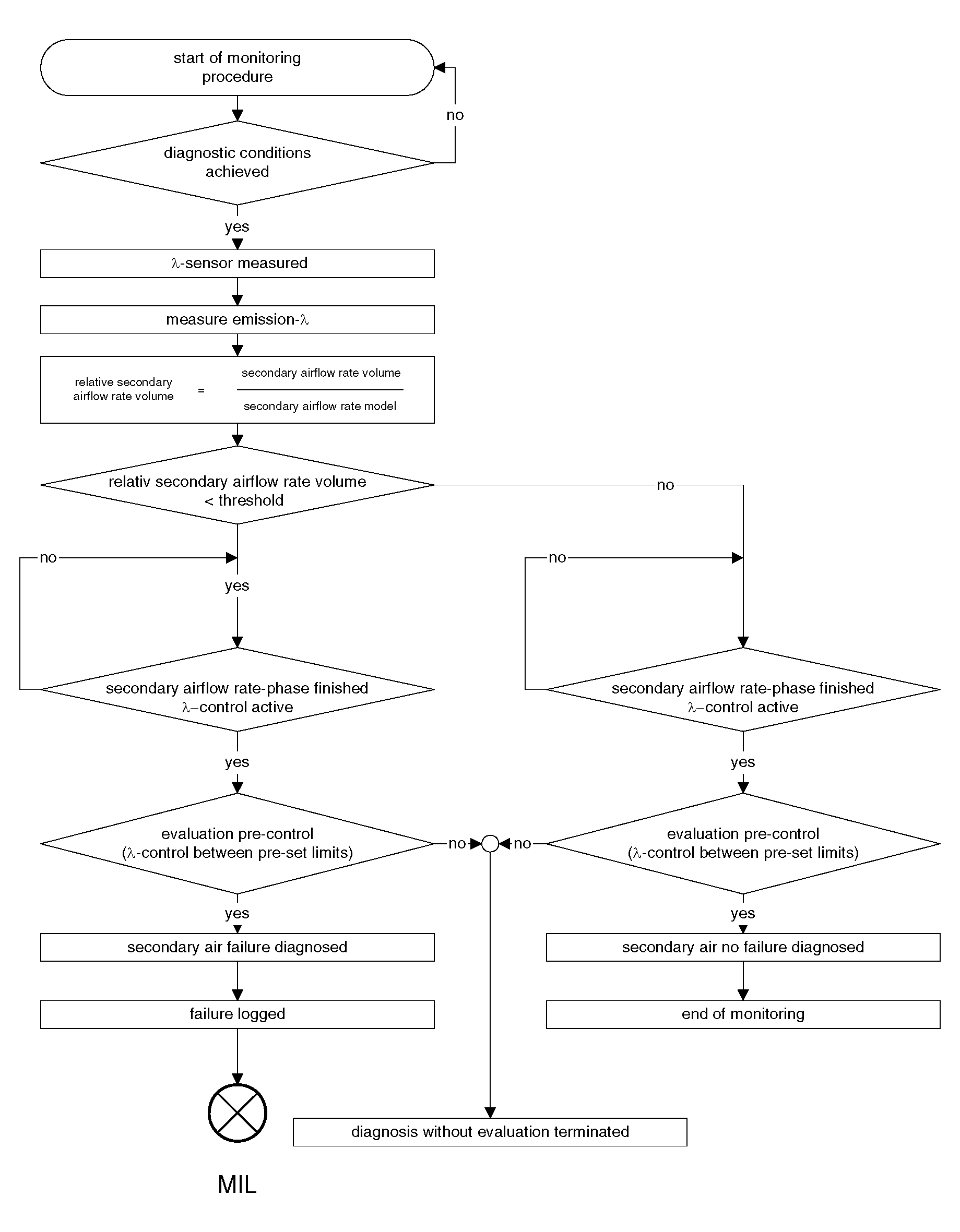

Fig 1: Monitoring Structure Of Secondary Air System Monitoring Diagram

G04562008

Courtesy of BMW OF NORTH AMERICA, INC.
