11 51 ... Overview Of Cooling System (N73)
11 51 ... Overview Of Cooling System (N73)

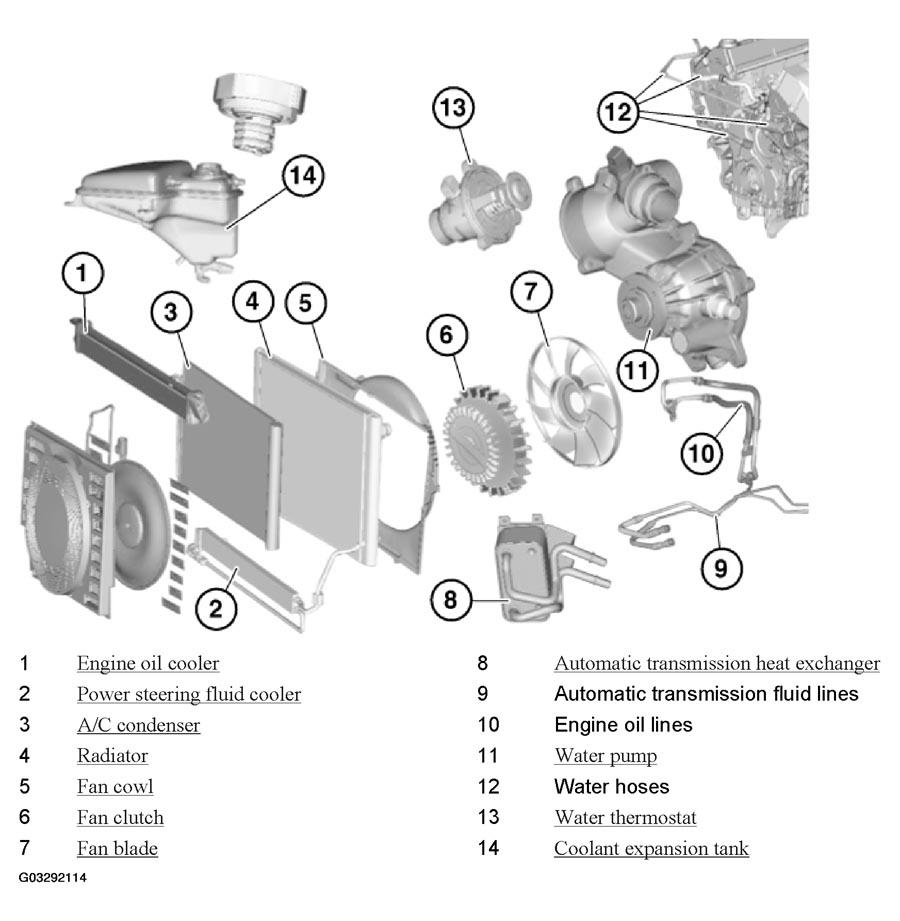

Fig 1: Locating Cooling System Components (N73)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
