11 14 ... Overview Of Housing Cover (N73)

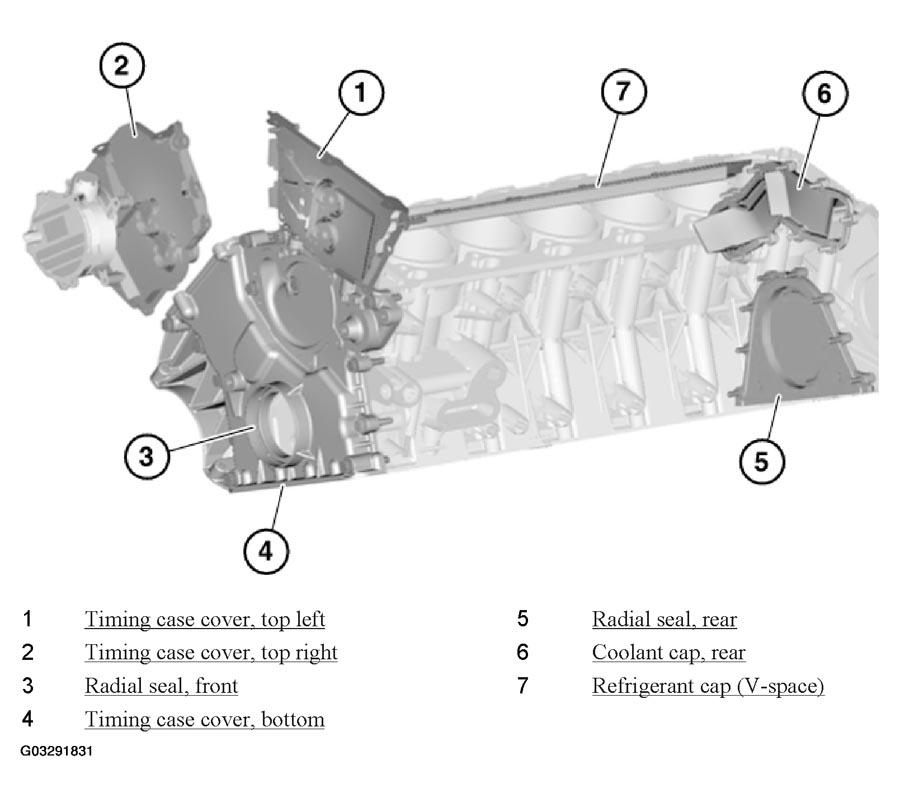

Fig 1: Locating Housing Cover Components (N 73)

G03291831

Courtesy of BMW OF NORTH AMERICA, INC.
