Home >> BMW >> 2004 >> 760Li >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine - Repair (N73) >> Cylinder Head With Cover >> 11 12 ... Overview Of Cylinder Head (N73)

11 12 ... Overview Of Cylinder Head (N73)

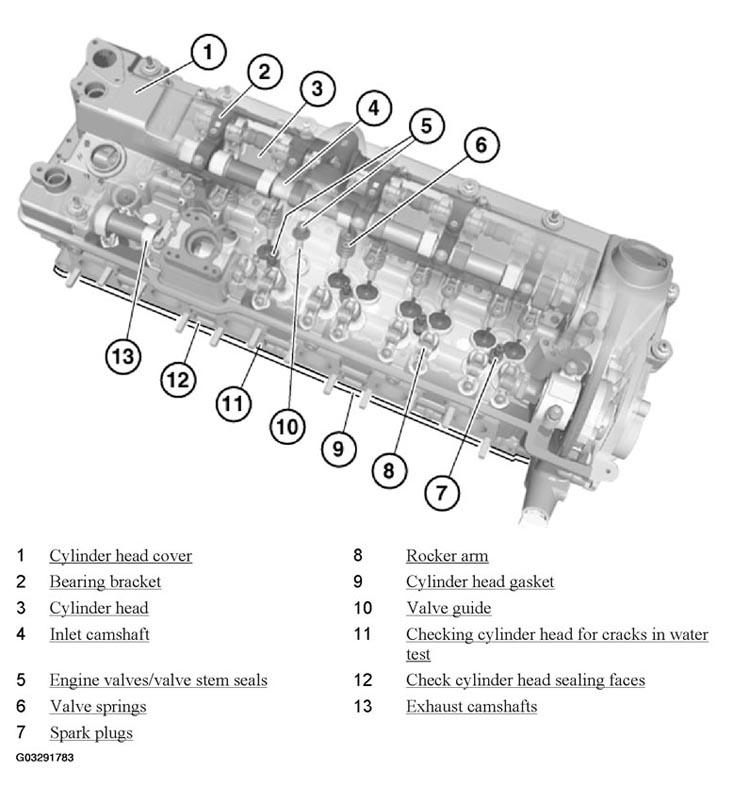

Fig 1: Locating Cylinder Head Components (N73)

G03291783

Courtesy of BMW OF NORTH AMERICA, INC.
