12 31... Replacing Alternator Belt Pulley
NOTE:
For Special Tool identification, see ENGINE ELECTRICAL SYSTEM - SPECIAL TOOLS .
Special Tools Required:
- 12 7 110
Remove and install alternator drive belt.
Depending on alternator type, grip shaft with:
- Hexagon socket.
- Multi-tooth socket or,
- Torx socket wrench.

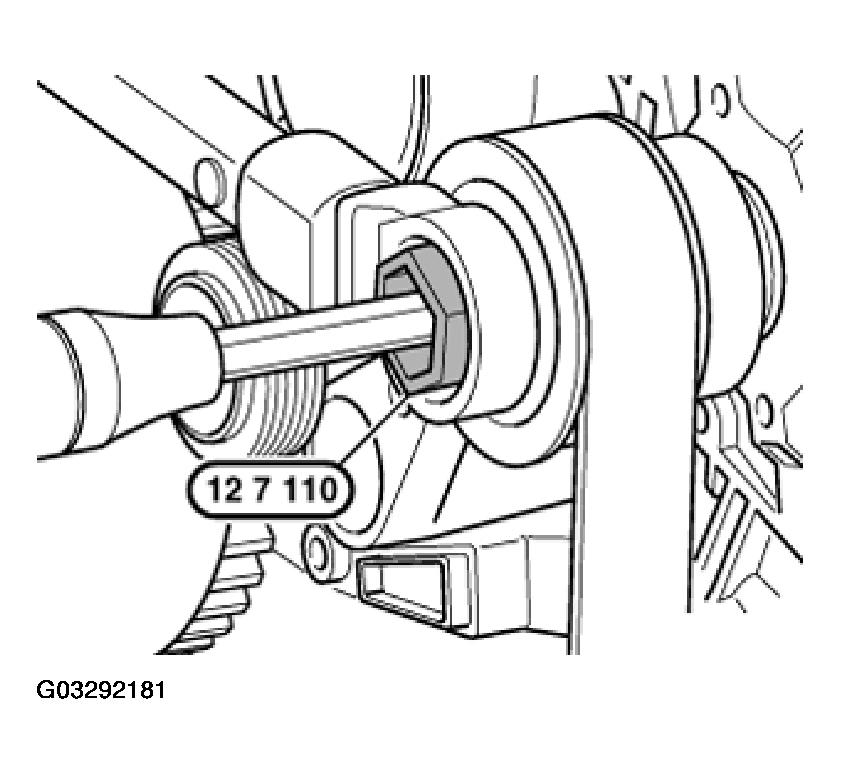

Release nut with special tool 12 7 110.
Installation:
Tightening torque, refer to 12 31 2AZ/12 31 3AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
