51 44... Removing And Installing/Replacing Front Console Insert

Necessary Preliminary Tasks:

• Remove complete ceiling light (front). Refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT (FRONT) .

Lever out front console insert (1) in direction of arrow and remove.

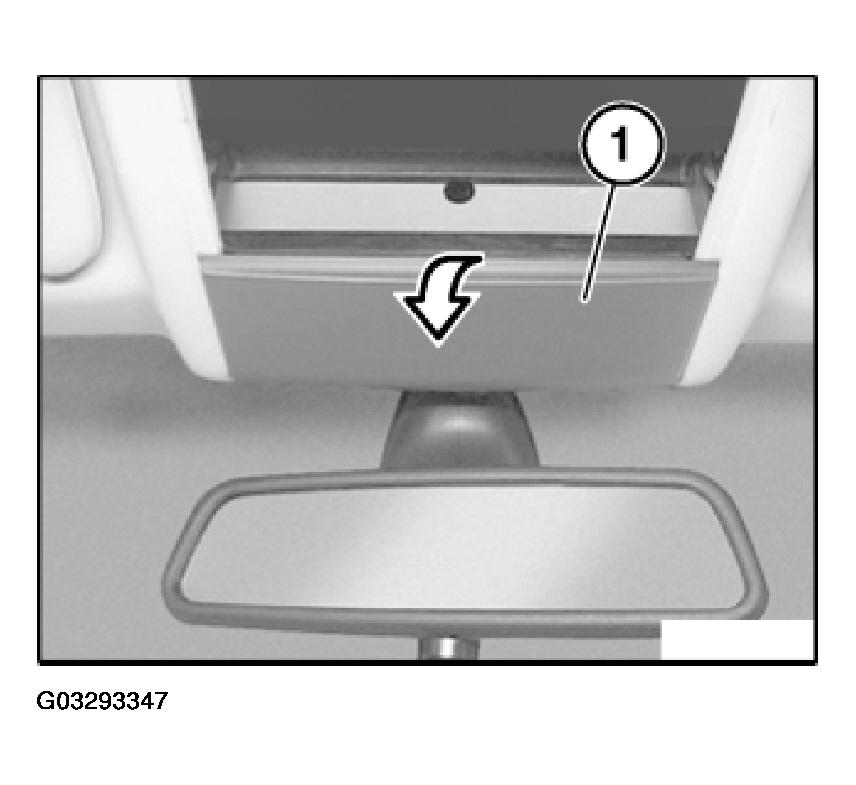

Fig 1: Removing Front Console Insert

Courtesy of BMW OF NORTH AMERICA, INC.
