51 45... Removing And Installing/Replacing Control Display Trim

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

Unclip fresh air grill (1) with special tool 00 9 341.

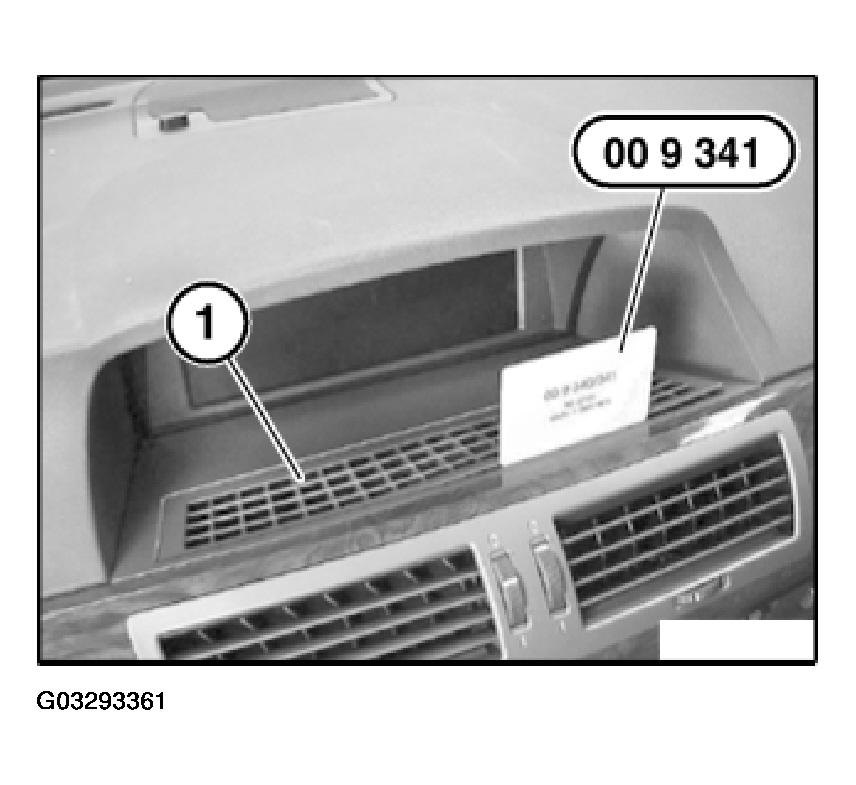

Fig 1: Unclipping Fresh Air Grill
G03293361Courtesy of BMW OF NORTH AMERICA, INC.

Grip trim (1) through openings (2) from inside and unclip along wood trim towards top.

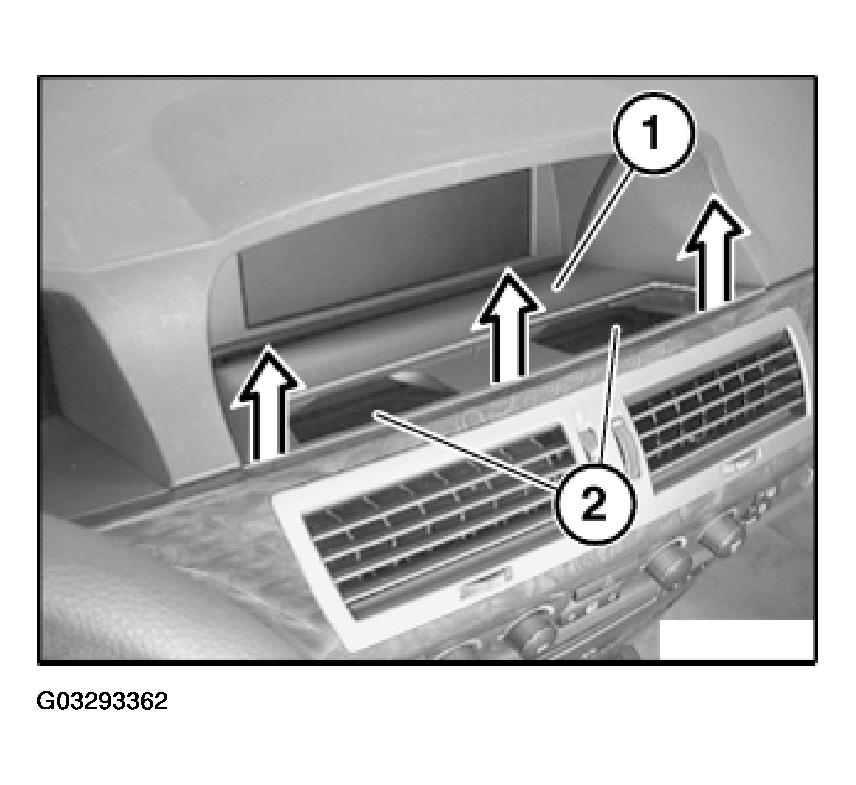

Fig 2: Removing Wood Trim
G03293362Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1 and 2) must not be damaged.

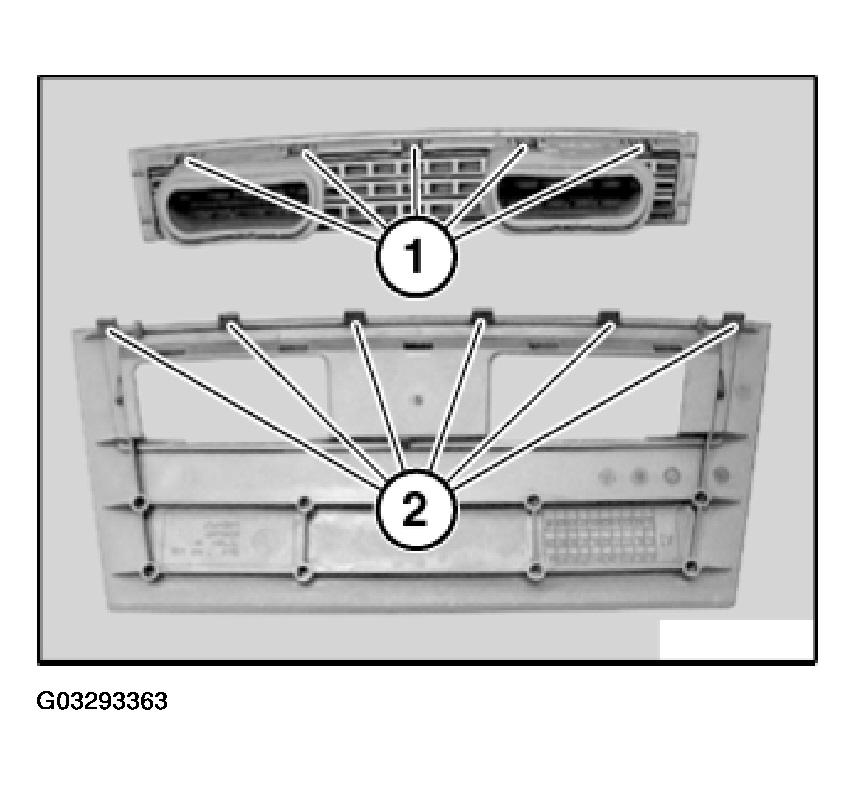

Fig 3: Identifying Catches In Trim
G03293363Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert trim (2) in mounting of control display (1).

Do not damage wood trim on right. If necessary, snap locks of trim (2) into place with special tool 00 9 341.

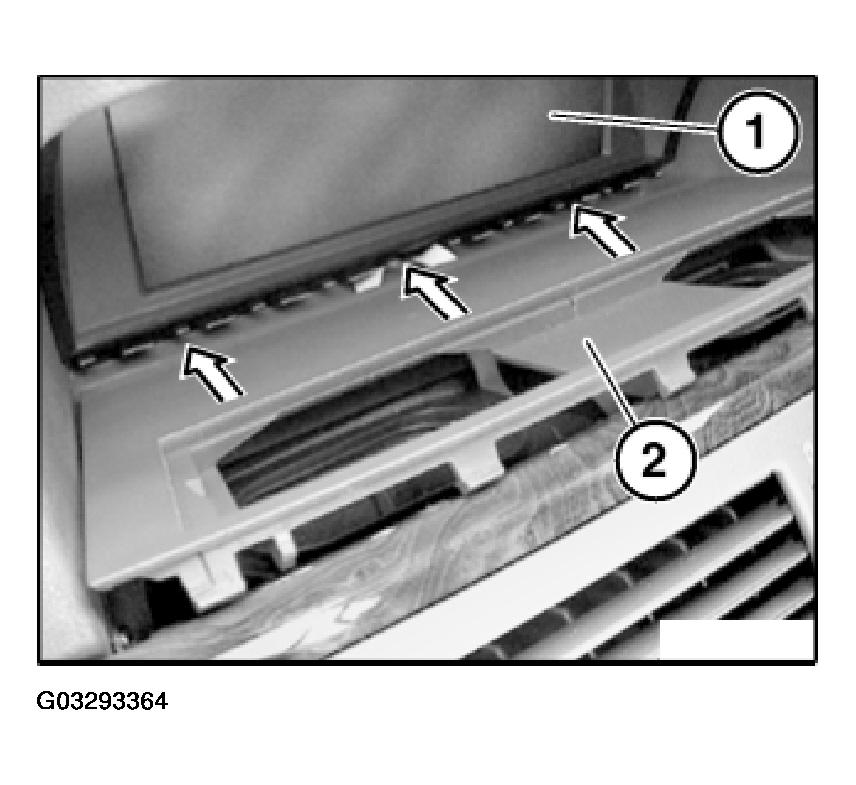

Fig 4: Inserting Trim In Control Display
G03293364Courtesy of BMW OF NORTH AMERICA, INC.
