51 11... Removing And Installing/Replacing Cover For Headlight Washer System On Left

Necessary Preliminary Tasks:

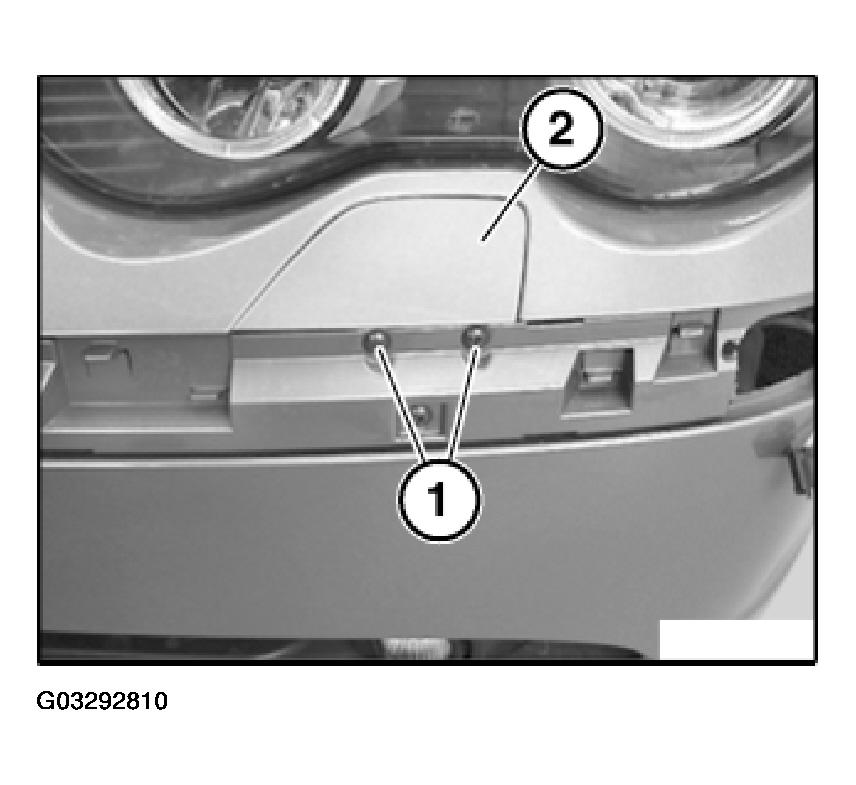

Build Date Up To 03/2005:

Release screws (1).

Remove cover (2) towards top.

Fig 1: Removing Cover (Build Date Up To 03/2005)

Courtesy of BMW OF NORTH AMERICA, INC.

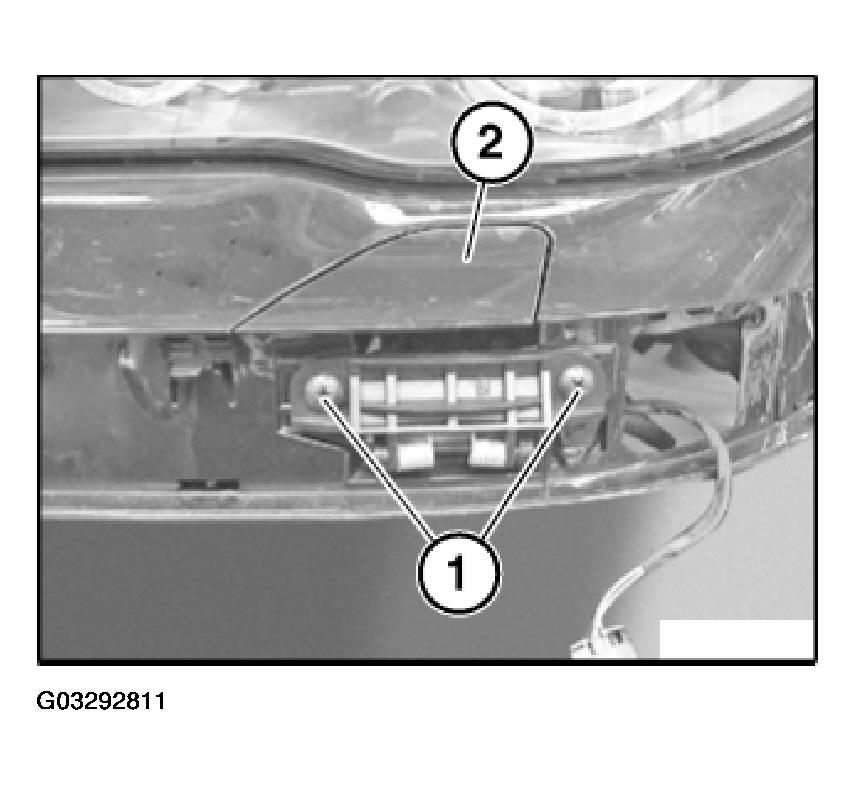

Build date from 03/2005:

Release screws (1).

Remove cover (2) towards front.

Fig 2: Removing Cover (Build Date From 03/2005)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

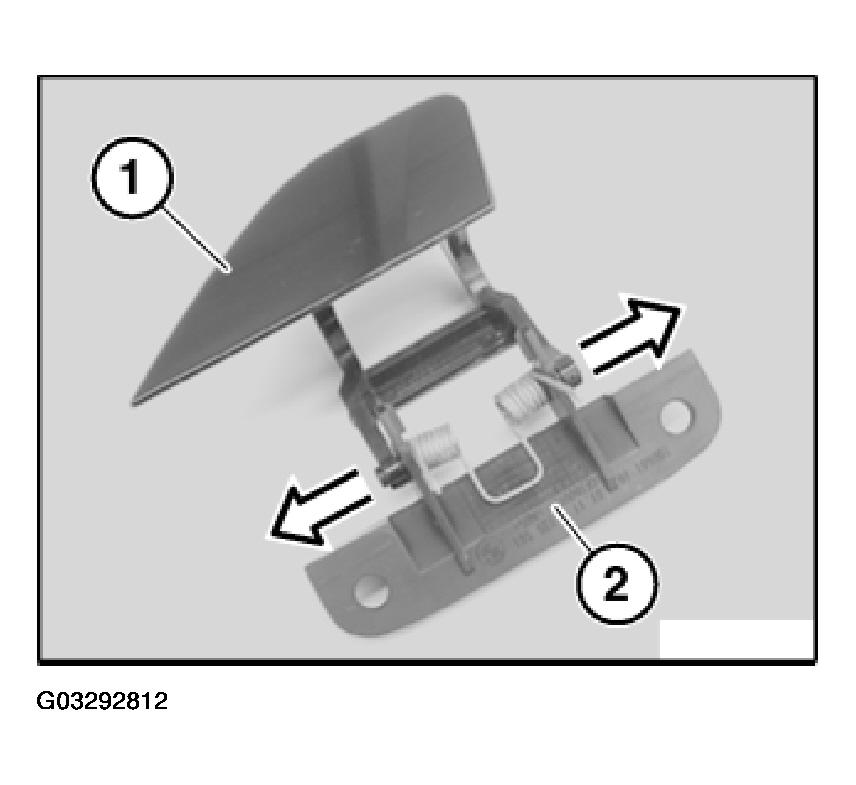

Detach flap (1) sideways from bearing support (2).

Fig 3: Removing Flap From Bearing Support

Courtesy of BMW OF NORTH AMERICA, INC.
