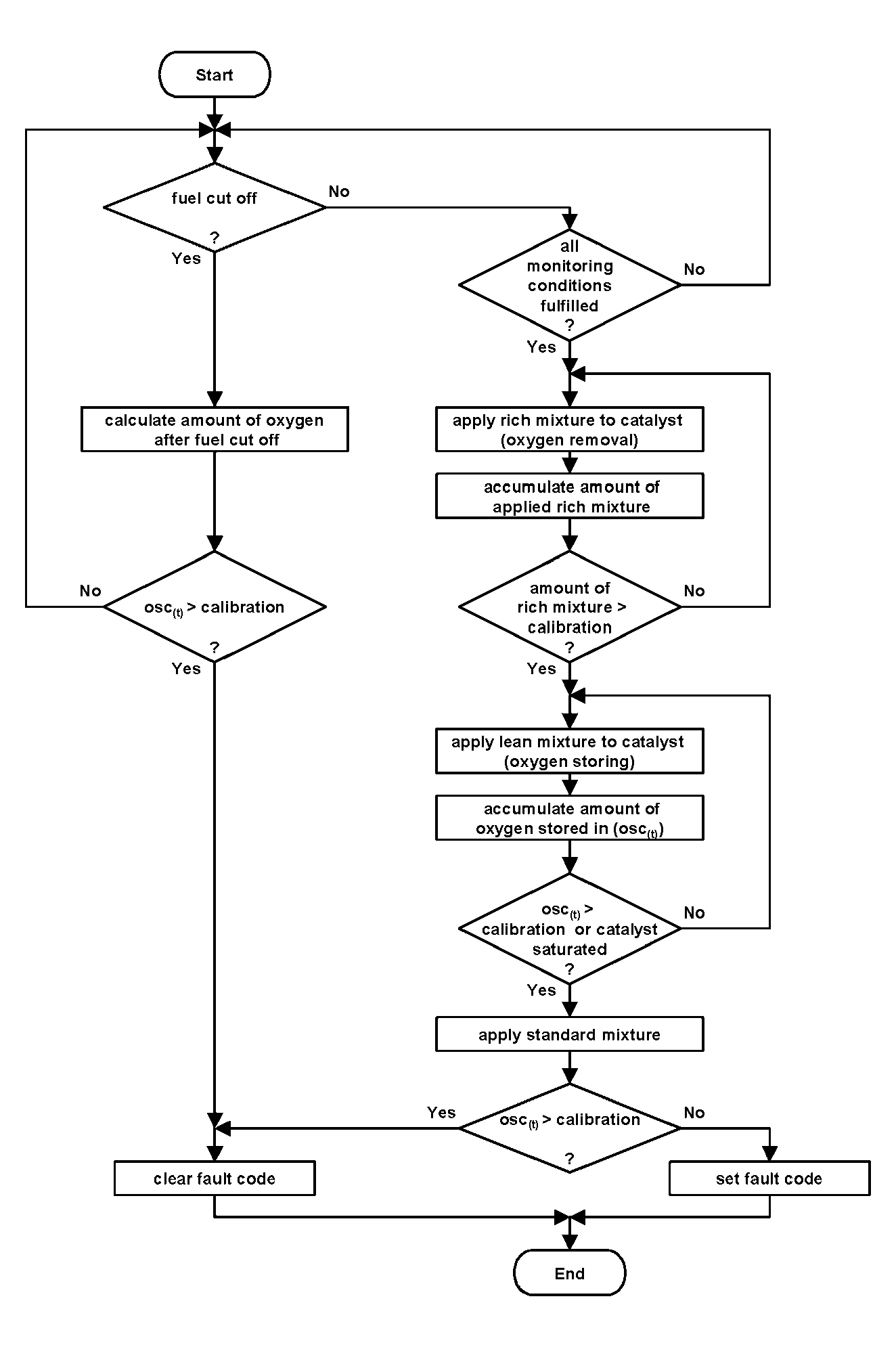

Home >> BMW >> 2004 >> 745Li >> Repair and Diagnosis >> Engine Performance >> System >> Diagnostic Trouble Codes With Test Charts (V8) >> Test Group Identification >> Catalyst Monitoring >> Block diagram of system operation
