Switch Block, Driver And Passenger

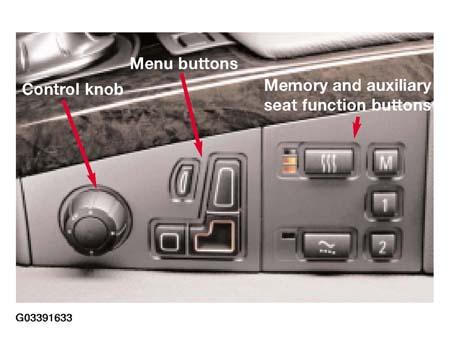

The controls for the driver and passenger seat have been relocated from the seat side panel and are now part of the center console. The switch block consists of two separate switch assemblies.
The forward switch assembly contains a control knob and menu buttons in the shape of a seat for function selection.
The rearward switch assembly contains the memory function buttons and possibly three more features:
- Seat heating control
- Seat ventilation control
- Active seat control
LEDs indicate the operating status of each particular seat auxiliary function.
The adjustment request is transmitted from the switch block via ribbon cables to be processed by the BZM.
