AIRBAG Triggering Unit
>>
72 12 ... Overview of AIRBAG modules, seat belts and AIRBAG triggering units
72 12 ... Overview of AIRBAG modules, seat belts and AIRBAG triggering units

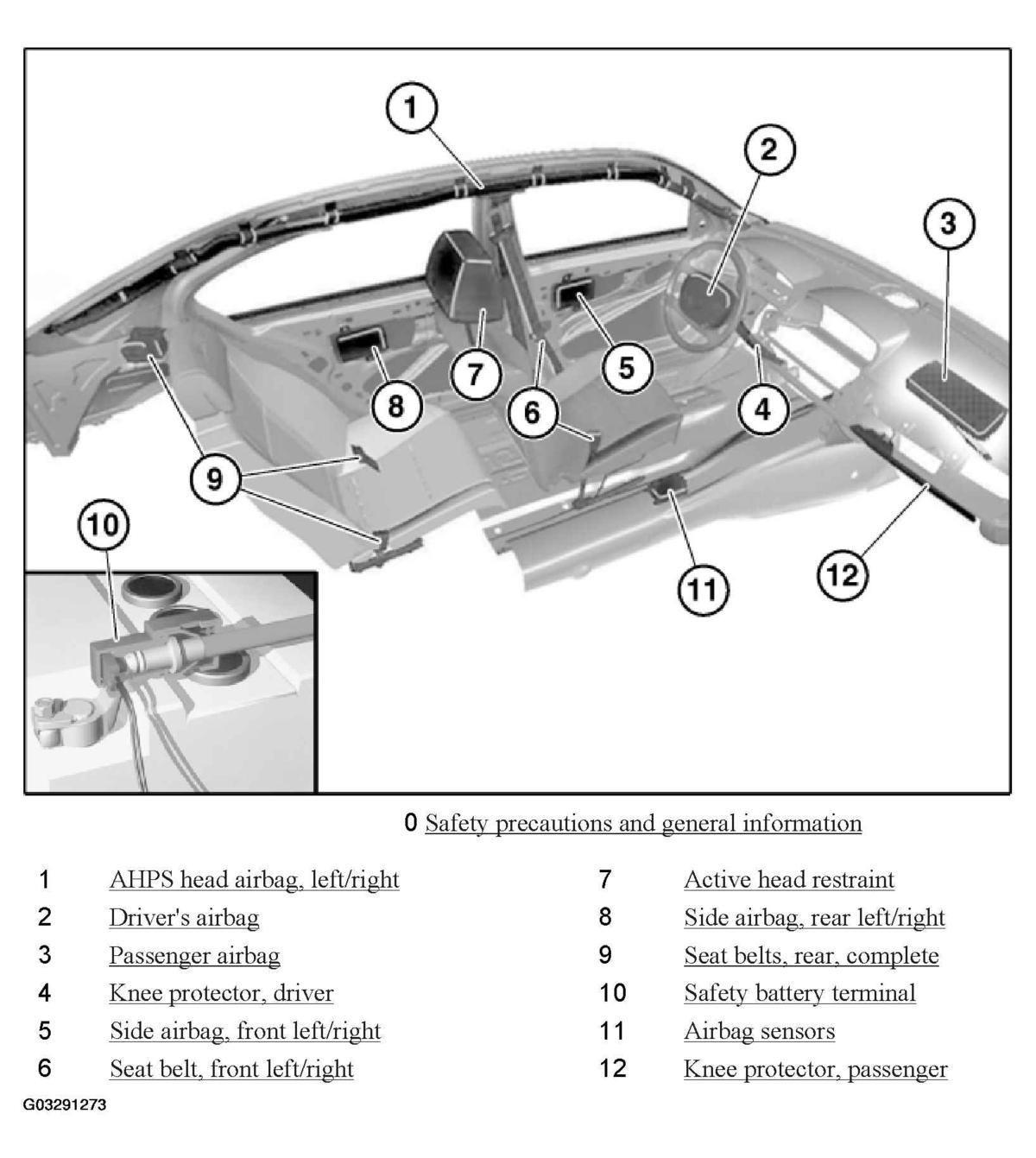

Fig 1: Overview Of AIRBAG Modules, Seat Belts And AIRBAG Triggering Units
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
