11 00 045 Checking Absolute Compression Of All Cylinders
Necessary Preliminary Tasks:
- Remove acoustic cover.
- Remove right ignition coil cover.

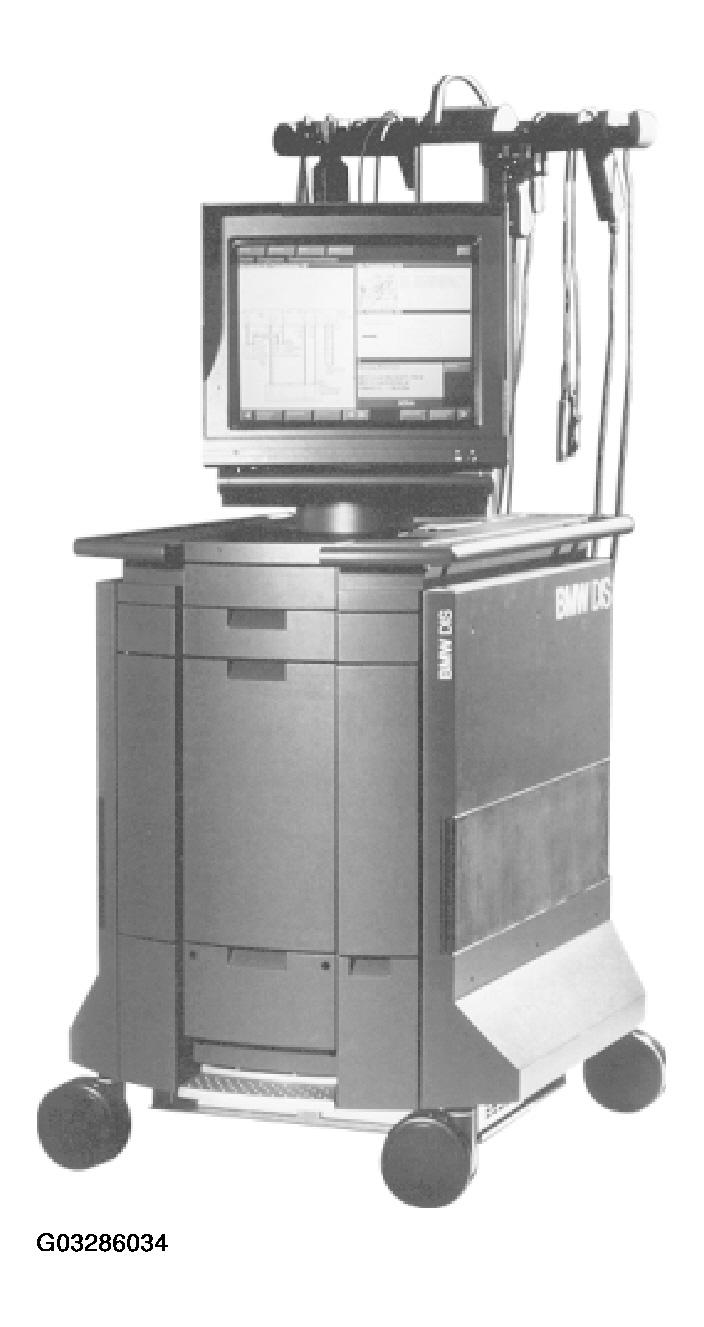

- Connect DIS Tester.
Test:
- Call up Diagnosis.
- Select car > right arrow key.
- Function selection.
- Complete vehicle.
- Drive.
- Engine management.
- Valve gear.
- Valvetronic variable valve gear.
- Mechanical components / function.
- Test schedule > right arrow key.
- Compression test > right arrow key.
- Follow DIS Tester instructions.
NOTE:
Clear fault memory.
