Securing Engine In Installation Position With Special Tool (N62)

NOTE:

For Special Tool identification, refer to ENGINE - SPECIAL TOOLS - 645CI .

Special Tools Required:

Necessary Preliminary Tasks:

Remove acoustic cover.
Move engine hood into service position. Refer to 51 00 ... SERVICE POSITION OF ENGINE HOOD .
Remove air filter housing.
Remove microfilter. Refer to 64 31 061 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER HOUSING LOWER SECTION .
Remove tension strut on spring strut dome. Refer to 51 71 373 REMOVING AND INSTALLING/REPLACING TENSION STRUT ON SPRING STRUT DOME .
Release servo fluid reservoir and place to one side.

Assemble special tool 00 0 200 with special tools 00 0 201 / 00 0 202 / 00 0 203 / 00 0 204 / 00 0 208 and fit.

Secure special tool 11 0 020 to front and rear lifting eyes (1) and to special tool 00 0 200.

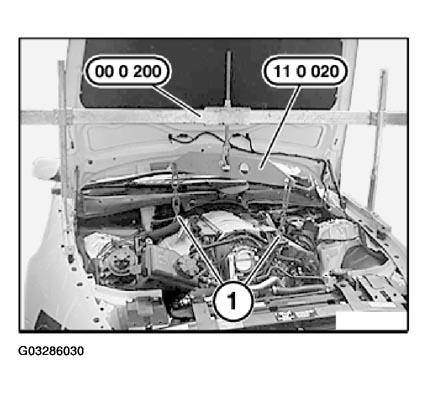

Fig 1: Assembling Cross Member With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

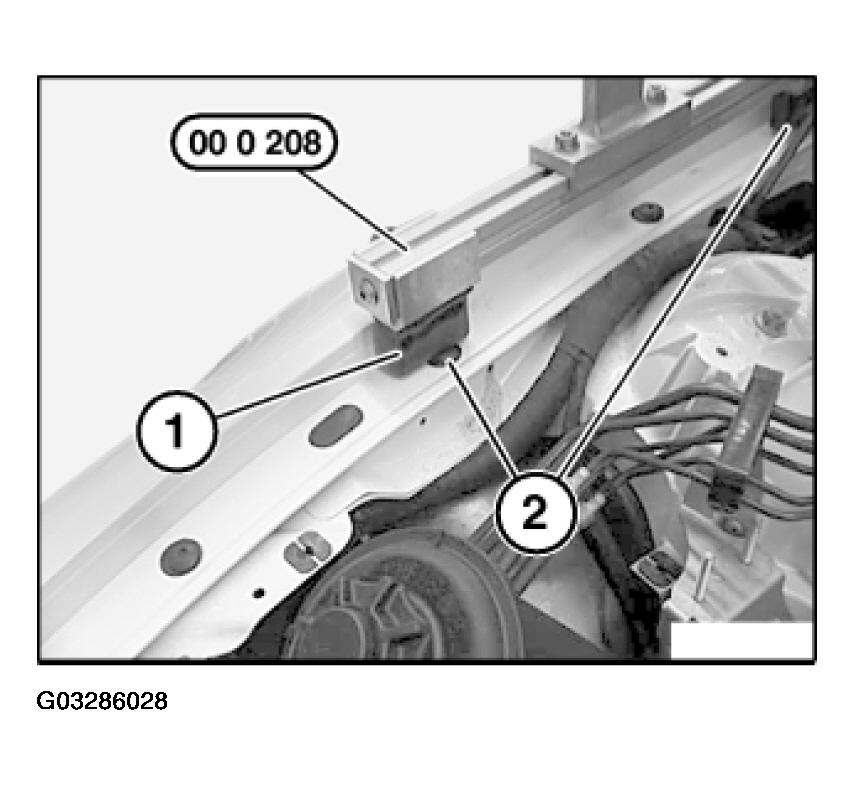

NOTE: Supports (1) of special tool 00 0 208 must rest on screw connection (2) of both side panels (risk of damage).

Fig 2: Supporting Cross Member On Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1 and 2).

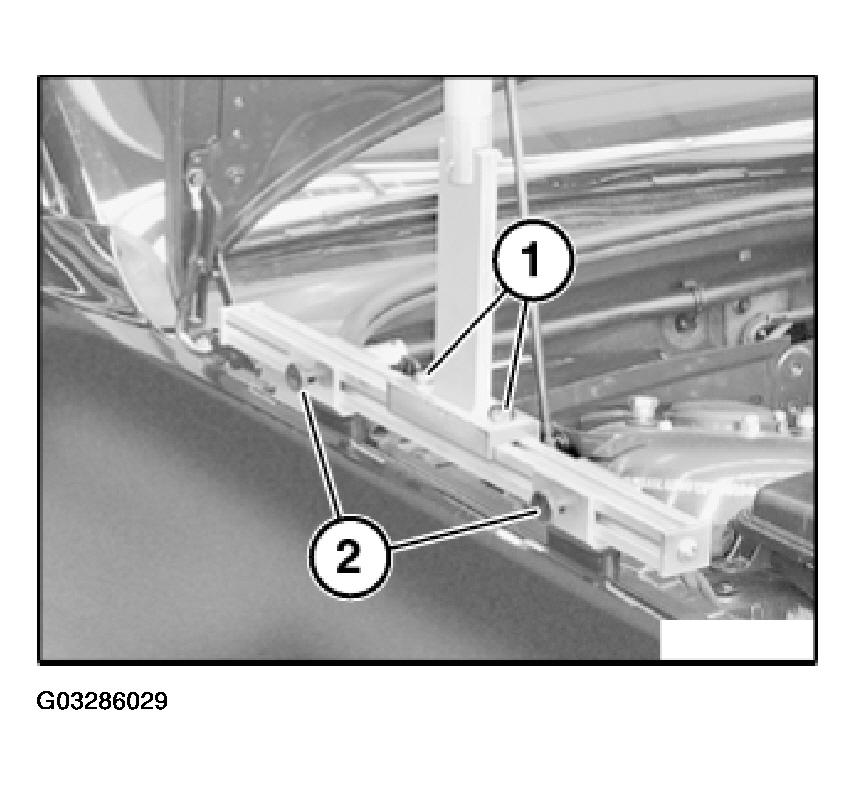

Fig 3: Tightening Screws On Cross Member

Courtesy of BMW OF NORTH AMERICA, INC.

Release engine mounts at top left and right.

Raise engine with special tool 00 0 200 approx. 10 mm.

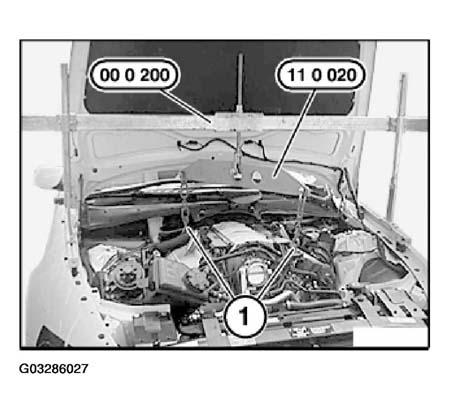

Fig 4: Raising Engine With Cross Member

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

For Special Tool identification, refer to ENGINE - SPECIAL TOOLS - 645CI .

Special tools required:

Remove acoustic cover.

Using special tool 51 2 180, secure engine hood in service position, refer to 51 00 ... SERVICE POSITION OF ENGINE HOOD .

Assemble special tool 00 0 200 with special tools 00 0 201 / 00 0 202 / 00 0 203 / 00 0 204 / 00 0 208 and fit.

Secure special tool 11 0 020 to front and rear lifting eyes and to special tool 00 0 200.

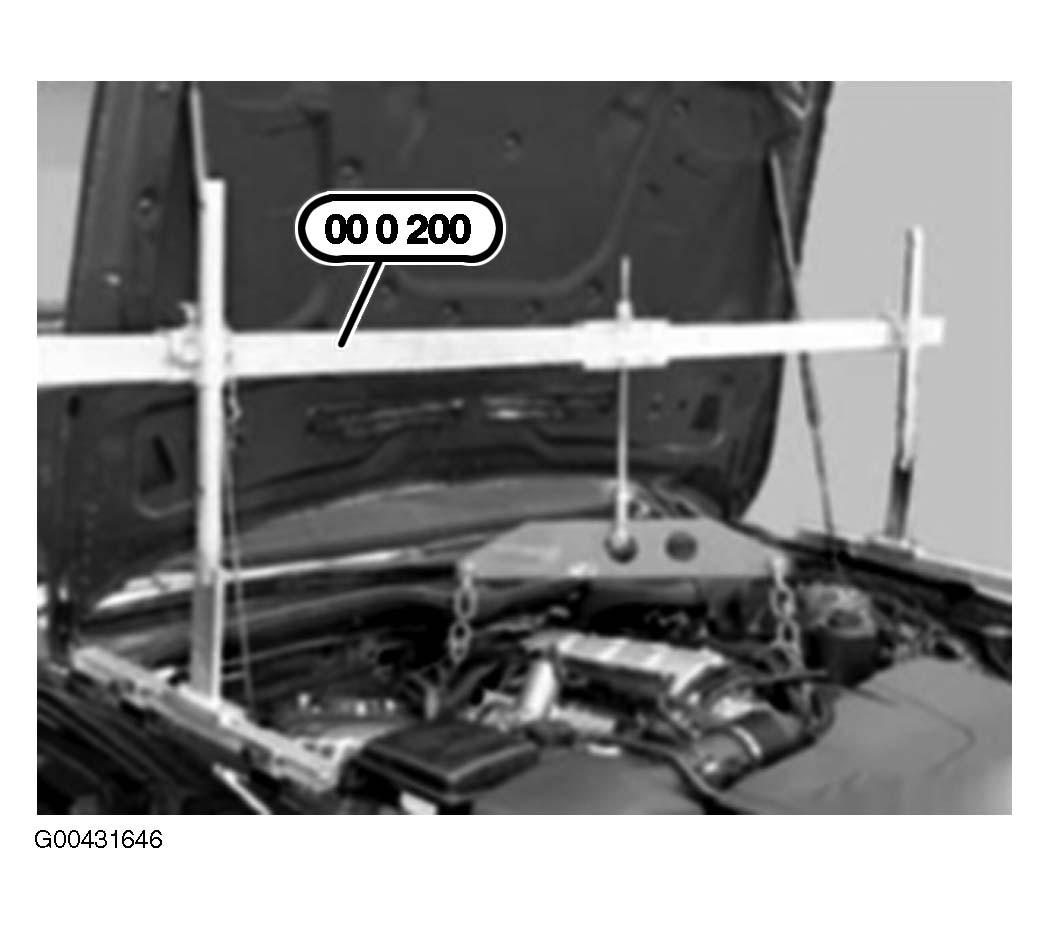

Fig 1: Fitting Special Tools To Lifting Eyes

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The supports (1) of special tool 00 0 208 must rest on the bolt connection of both side walls.

Tighten the screws (1 and 2).

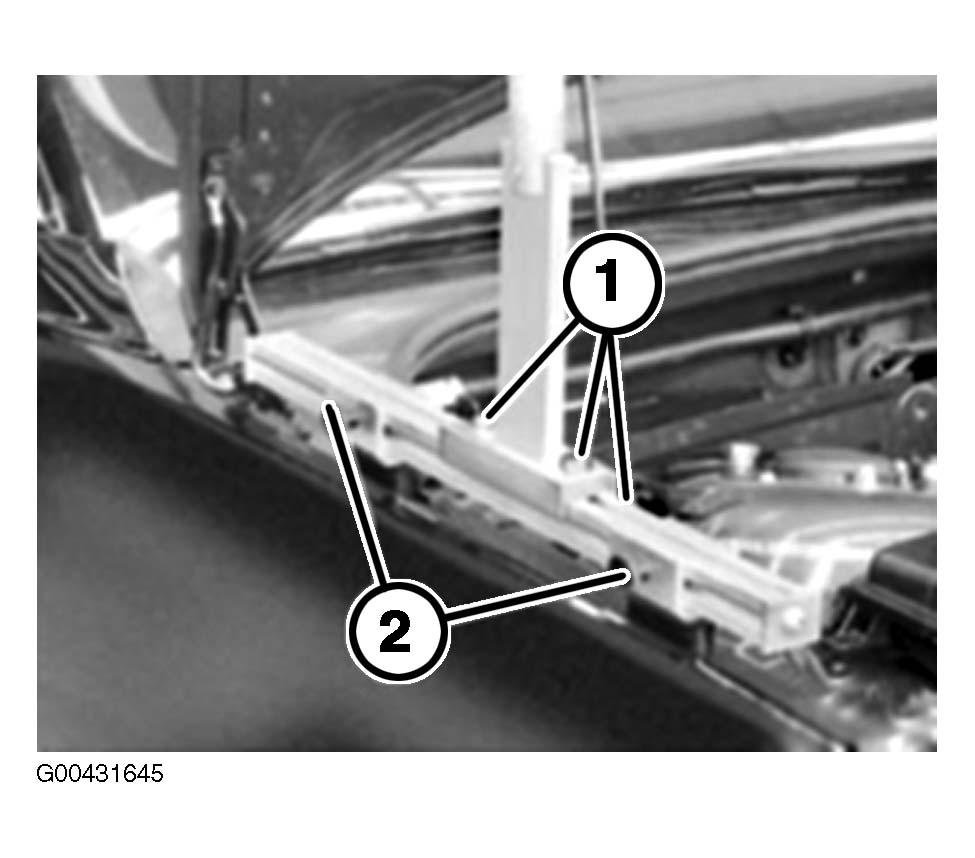

Fig 2: Tightening Screws (1 And 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Release engine mounts at top left and right.

Raise engine with special tool 00 0 200 approx. 10 mm.

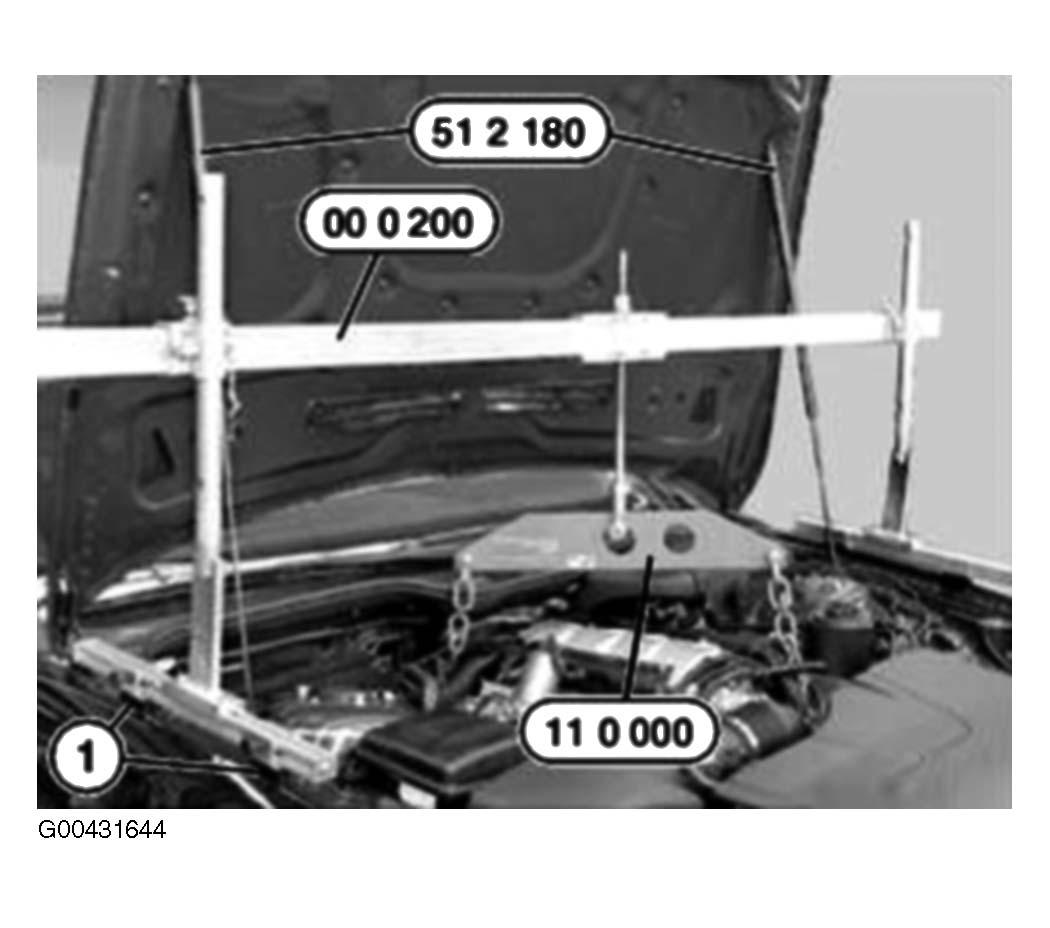

Fig 3: Raising Engine With Special Tool 00 0 200

Courtesy of BMW OF NORTH AMERICA, INC.
