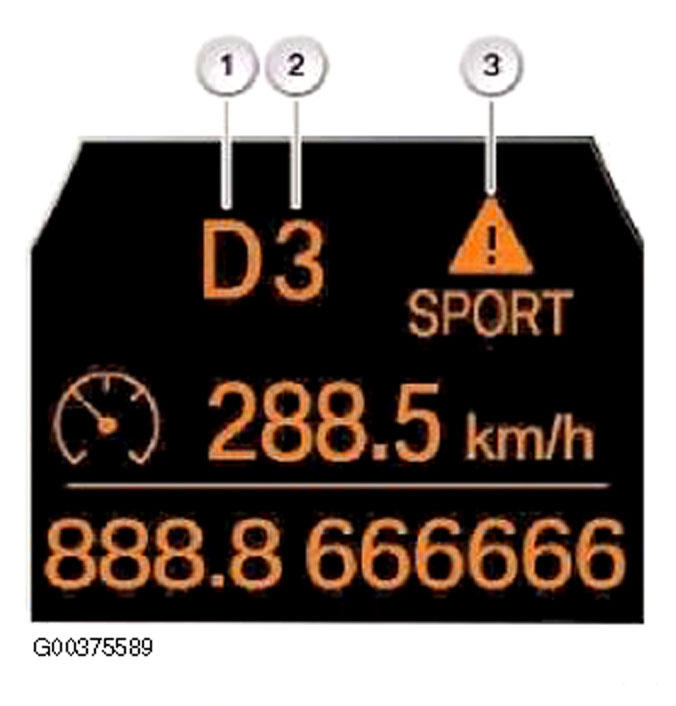

Displays/Indicators in Instrument Cluster
- Program indicator.
- Gear indicator.
- Failsafe indicator.
In automatic mode, the program indicator shows drive stage "D" engaged for automatic mode. The gear indicator shows the shifted gear. The program indicator is faded out when the manual program is selected. The gear indicator shows the shifted gear. See Fig 1 .
The word "SPORT" appears in the display when the FDC function is active. A transmission fault is indicated by a corresponding CC message.
