32.... Overview of steering

Safety precautions and general information: refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM , 32 41... INSTRUCTIONS FOR REMOVING AND INSTALLING EAR CLIPS , 32 41... INSTRUCTIONS FOR USING SPECIAL TOOL 32 4 000 , 32 41... NOTES ON HYDRAULIC LINE WITH QUICK-RELEASE COUPLING , and 72 00... SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

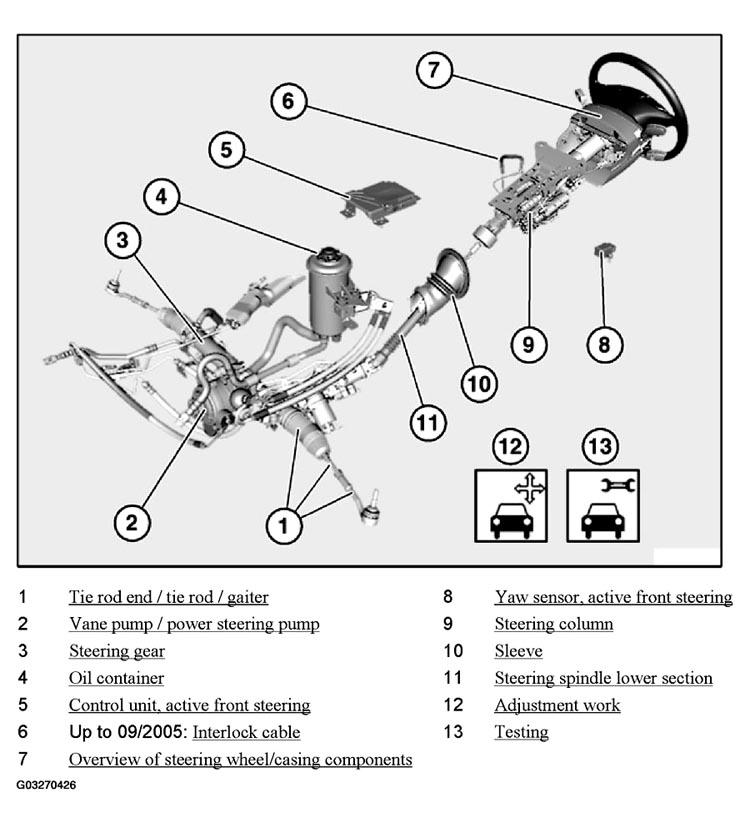

Fig 1: Identifying Components Of Steering System
G03270426Courtesy of BMW OF NORTH AMERICA, INC.
